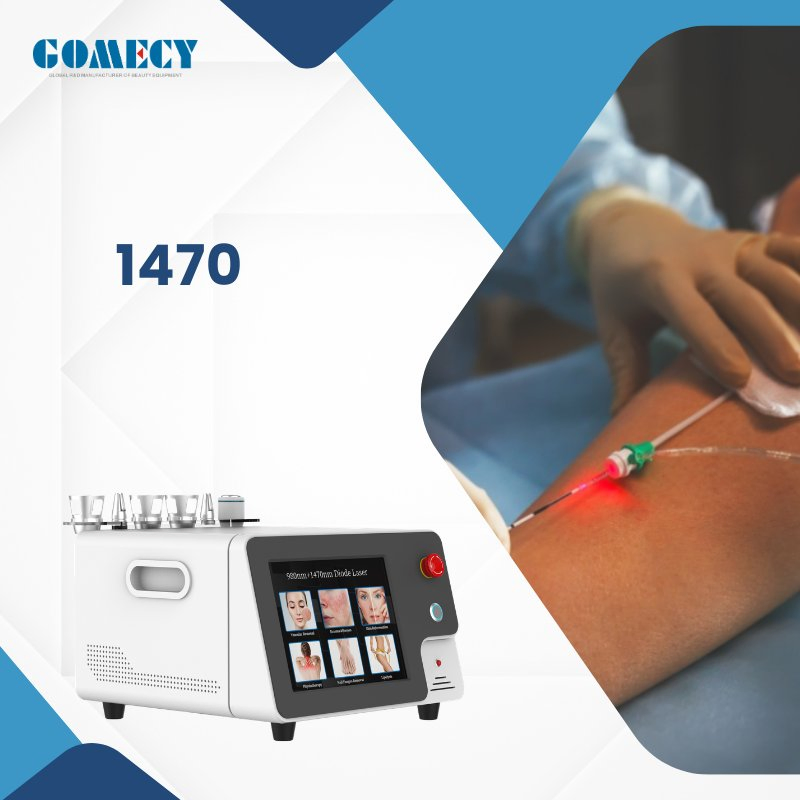

Medical Grade Endolift 1470nm Diode Laser System for Skin Tightening and Lipolysis

Customization:	Available
Type:	980+1470nm Diode Laser
Theory:	Laser

📋

Basic Information

Model NO.

GMS 6+1 Panacea

Application

Salon, Home

Portable

Product Name

Spider Vein Removal Laser

Technology

Vascular Lesion Treatment

Laser Type

980nm + 1470nm + 635nm

Standard Power

30W

Wavelengths

980nm & 1470nm & 635nm

Working Modes

Pulse / Cw / Single

Display

10.4-Inch Touch Screen

Machine Size

36 × 37 × 24cm

Capacity

500 Pieces/Month

✨

Medical Grade Endolift System

Our system is more than just a laser; it is a sophisticated photothermal platform engineered for precision. By integrating three distinct wavelengths, it targets specific biological chromophores—Water, Hemoglobin, and Cytochrome C Oxidase—providing a comprehensive solution from deep subdermal remodeling to superficial skin repair.

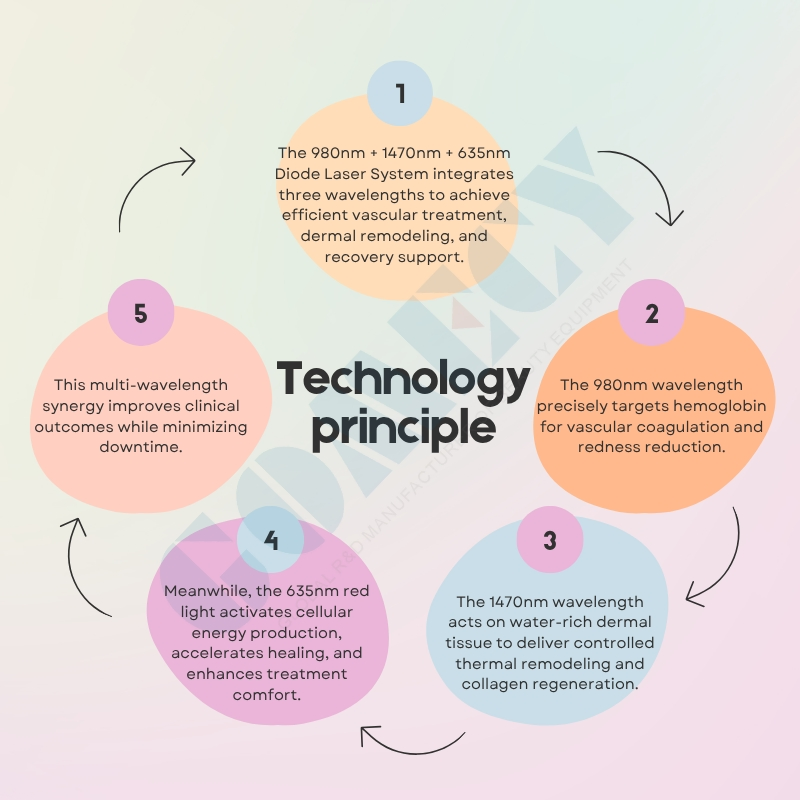

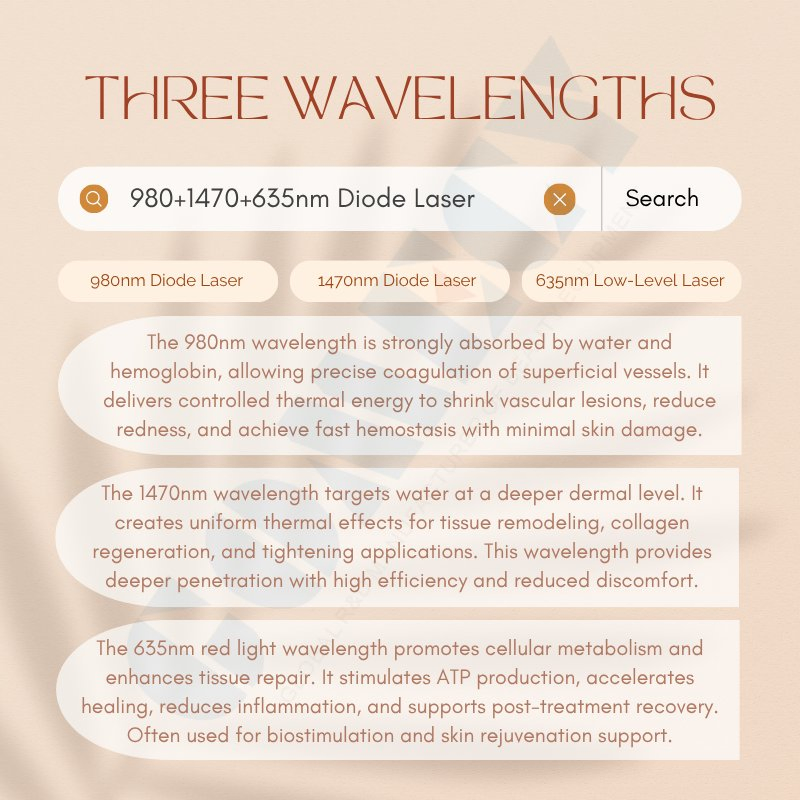

🔬Triple Wavelength Technology

1470nm - Endolift Focus

Target: Water and Interstitial Fluid.

Advantage: Water absorption is 40 times higher than 980nm. Achieve immediate contraction and long-term neocollagenesis for superior skin tightening.

980nm - Vascular Specialist

Target: Oxyhemoglobin.

Effect: Thermalizes vessel walls for natural reabsorption. Ideal for Telangiectasia, Rosacea, and deep vascular lesions.

635nm - Healing Beam

Principle: Photobiomodulation.

Benefit: Stimulates ATP production, reduces post-surgical downtime, and soothes inflammation for faster recovery.

🏥

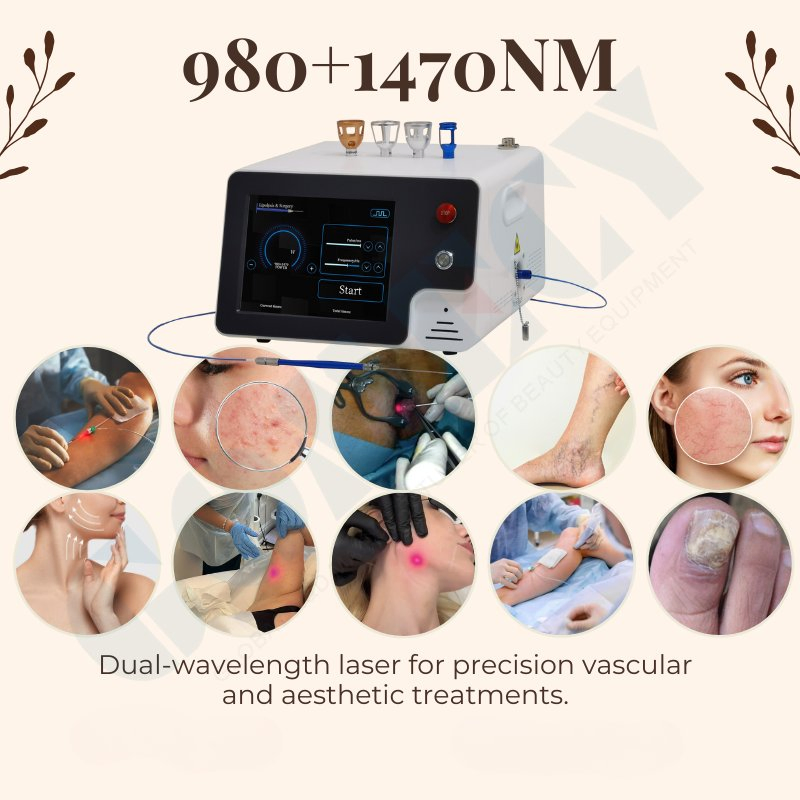

Clinical Applications

Aesthetic Focus:

Facial Sculpting, Double chin slimming, internal lipolysis (arms, knees, abdomen), and EVLT.

Dermatology:

Spider veins, cherry angiomas, facial flushing, and reticular leg veins.

Medical Therapy:

Onychomycosis (nail fungus), Plantar fasciitis, and post-operative wound care.

📊

Technical Specifications

Feature	Detailed Specification
Laser Source	High-Efficiency Gallium-Aluminum-Arsenide (GaAlAs) Diode
Wavelength Spectrum	980nm + 1470nm + 635nm Triple-Mode
Operating Interface	10.4" High-Definition True Color Touch Screen
Energy Delivery	Medical Grade Biquartz Optical Fiber (400μm/600μm)
Max Power Output	30W (980nm) + 9W (1470nm)
Working Modes	Continuous Wave (CW), Single Pulse, Repeat Pulse
Pulse Duration	15ms - 100ms (Adjustable)
Frequency Range	1Hz - 21Hz (High-speed firing)
Aiming Beam	650nm Red Diode (<5mW) for precise targeting

📸

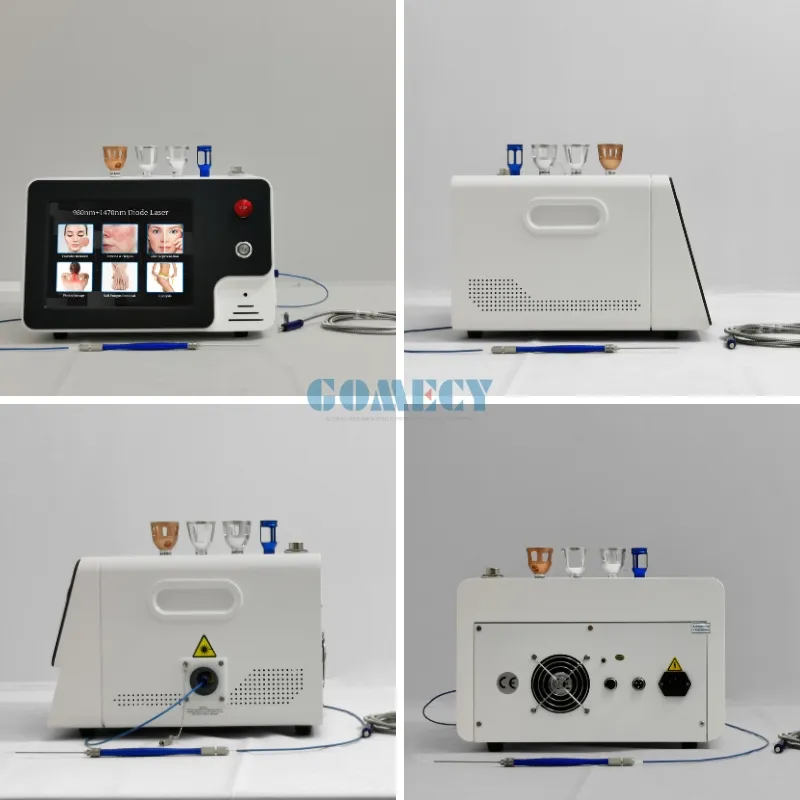

Detailed Photos

📝

Professional Clinical Protocol

1. Pre-Treatment: Consultation, area mapping, and mandatory use of wavelength-specific safety goggles.

2. During Treatment: Real-time skin response monitoring guided by the 650nm pilot beam. Precise handpiece selection.

3. Post-Treatment: Immediate cold compress. Avoid heat (saunas/hot showers) and ensure SPF 50+ protection.

📜

Quality Certifications

❓

Frequently Asked Questions

Why are three wavelengths better than a single wavelength?

Each wavelength has a different "target." 1470nm is best for fat and skin tightening (Endolift), 980nm is superior for removing blood vessels (Vascular), and 635nm speeds up healing. Combining them maximizes your treatment range and ROI.

Is the Endolift procedure painful?

Because we use ultra-fine medical fibers (400μm), the procedure is minimally invasive. Most patients require only local anesthesia and report minimal discomfort with very short downtime compared to traditional surgery.

What consumables are required for operation?

The primary consumable is the Medical Optical Fiber. We provide high-quality Biquartz fibers in different sizes (400μm/600μm) depending on whether the treatment is surgical or superficial.

Is professional training and certification provided?

Yes! We provide comprehensive user manuals, operation videos, and online clinical training to ensure your staff can operate the device safely and effectively.

What is the scope of post-operative care?

We recommend immediate cold compresses and strict sun protection (SPF 50+). The 635nm wavelength integrated into the system also significantly aids in reducing post-operative inflammation and healing time.

What technical support is available after purchase?

We offer a standard warranty and lifetime technical support. Our engineering team provides remote troubleshooting and guidance to ensure your clinic operates without interruption.
