Hot Sale Opt IPL Laser Hair Removal and Skin Whitening System

Customization:	Available
Type:	Hair Removal Instrument
Theory:	E-Light

i

Basic Information

Model NO.

DY-B3

Application

Salon, SPA Center, Clinic, Hospital

Portable

Stationary

Function

Hair Removal, Skin Rejuvenation, Blood Vessel etc

Certificate

Ce, IEC60335

Transport Package

Wooden Package

Specification

60cm*60cm*124cm

HS Code

8543709990

Capacity

300/Month

★

Product Description

The Super IPL + RF System is the upgraded IPL HR with single pulse mode emitting energy averagely Plus RF function based on common IPL/E-Light technology. It combines 4 types of working modes by skin contact cooling: IPL FHR/SSR + Standard HR/SR + E-light + Bipolar Radio Frequency.

When these four technologies are united in one treatment, wonderful results and a superior experience can be expected. The energy of Radio Frequency can reach the deep skin layer and heat up tissue, allowing lower energy to be applied during the IPL treatment. This significantly decreases uncomfortable feelings and enhances the final outcome. Additionally, the integrated cooling system in the Super IPL+RF further eases any sensation during the procedure. Since RF energy is not dependent on melanin, the treatment is highly effective even on soft or thin hair, reducing the risks associated with traditional IPL.

▶

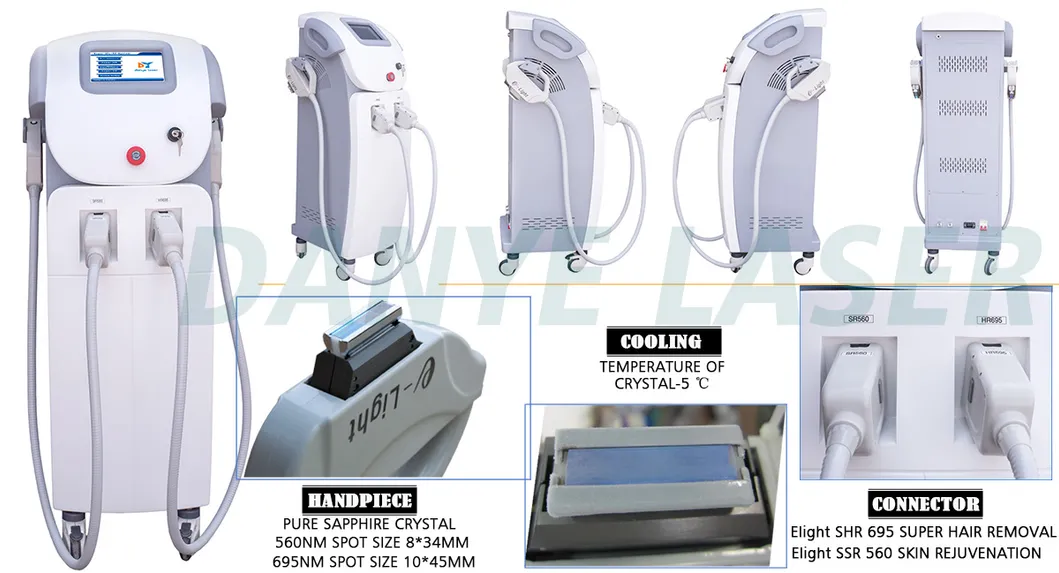

Product Display

⚙

Technical Specification

Model	DY-B3
Standard HR/SR mode
IPL Power	0-50J/cm2
Wavelength	560nm-1200nm light & RF output; 695nm-1200nm light & RF output
Pulse number	1-6pcs
Pulse width	1-10ms
Pulse delay	5-100ms
Discharge time	1-3s
Spot size	560nm 834mm, 695nm 1045mm
RF Power	0-50J/cm2
RF output time	0.5-2.0s
FHR/SSR mode
IPL Power	0-50J/cm2
Pulse number	1pcs (fixed)
Frequency	1-5Hz RF
Main Machine Details
Screen display	Large 8-inch colorful touch screen
Cooling system	Water refrigeration + large radiator + semi-conductor cooling + air cooling
Dimension	36×40×115cm
Net weight	45 kg

✔

Treatment & Results

?

Frequently Asked Questions

What makes the DY-B3 Super IPL+RF system unique?

It combines four working modes (IPL FHR/SSR, Standard HR/SR, E-light, and Bipolar RF) into one system, allowing for deeper tissue heating with lower IPL energy, which increases both safety and efficacy.

Is the treatment painful?

No, the system features a multi-stage cooling process including water refrigeration, semi-conductor cooling, and air cooling to ensure a comfortable and painless experience for the patient.

Can this machine remove light-colored or thin hair?

Yes. Because it utilizes Radio Frequency (RF) energy which is not absorbed by melanin, it is more effective on thin and light-colored hair compared to traditional IPL machines.

What are the primary applications of this device?

The DY-B3 is designed for professional use in salons and clinics for permanent hair removal, skin rejuvenation, treating blood vessel issues, and improving skin texture.

What is the difference between FHR and Standard HR modes?

Standard HR mode is used for traditional hair removal with adjustable pulse numbers, while FHR (Fast Hair Removal) mode operates at a higher frequency (1-5Hz) for quicker treatments over larger body areas.
