| Model NO. | FJ-HRA3-10A |
| Control | Automatic |
| Frequency Range | High Frequency (27.12 MHz/40.68 MHz) |
| Electric Current | AC 380V/220V |
| Output Power | 10000W |
| Oscillation Tube | E3069 |
| Protection Device | NL-5557 Spark Protection |
| Pressurization | Pneumatic / Hydraulic |
| Heating Type | 0-300℃ Automatic Constant Temperature |
| Effective Stroke | 200mm (Customizable) |
| Frame Structure | Laser-Cut Steel Frame |
| Package Gross Weight | 800.00kg |

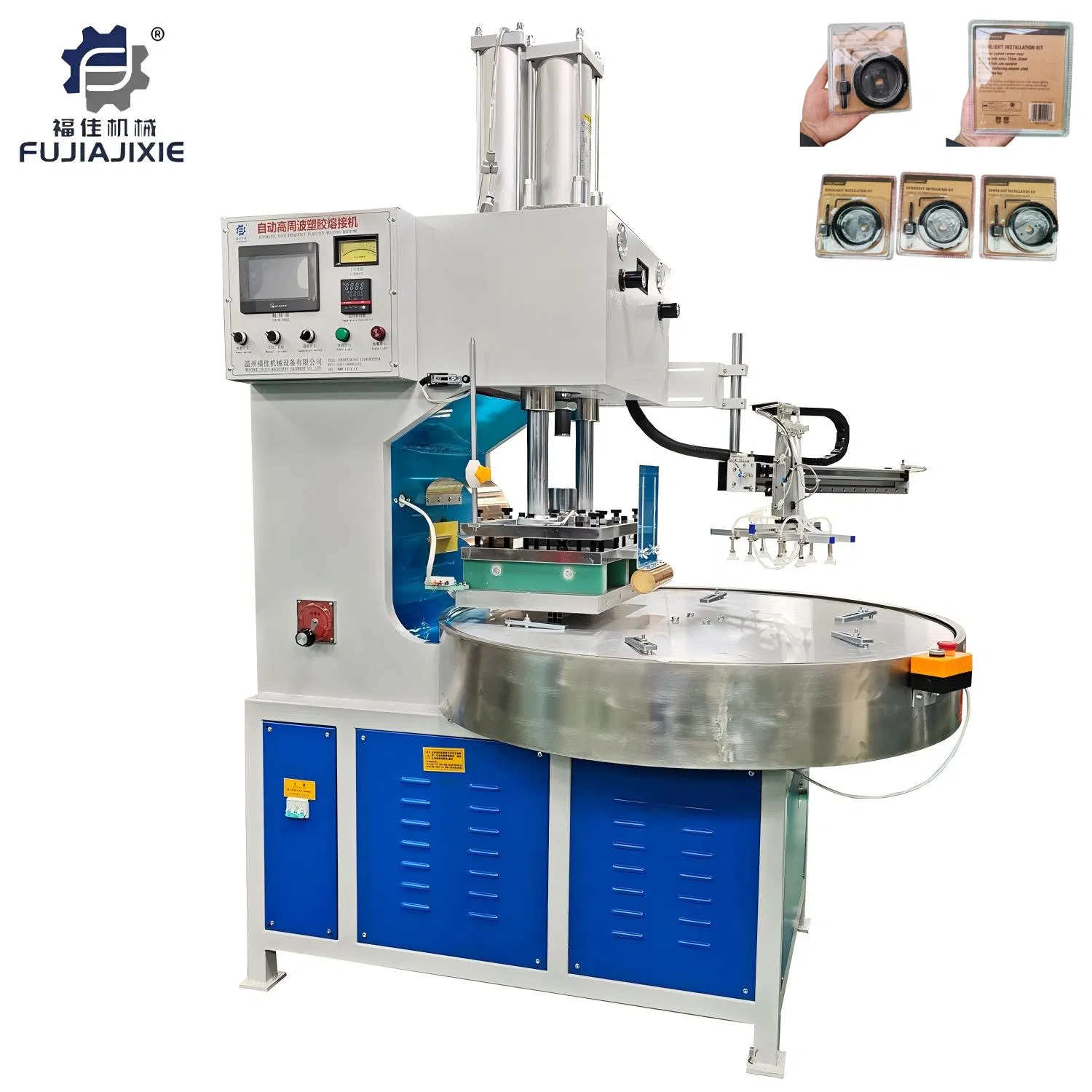

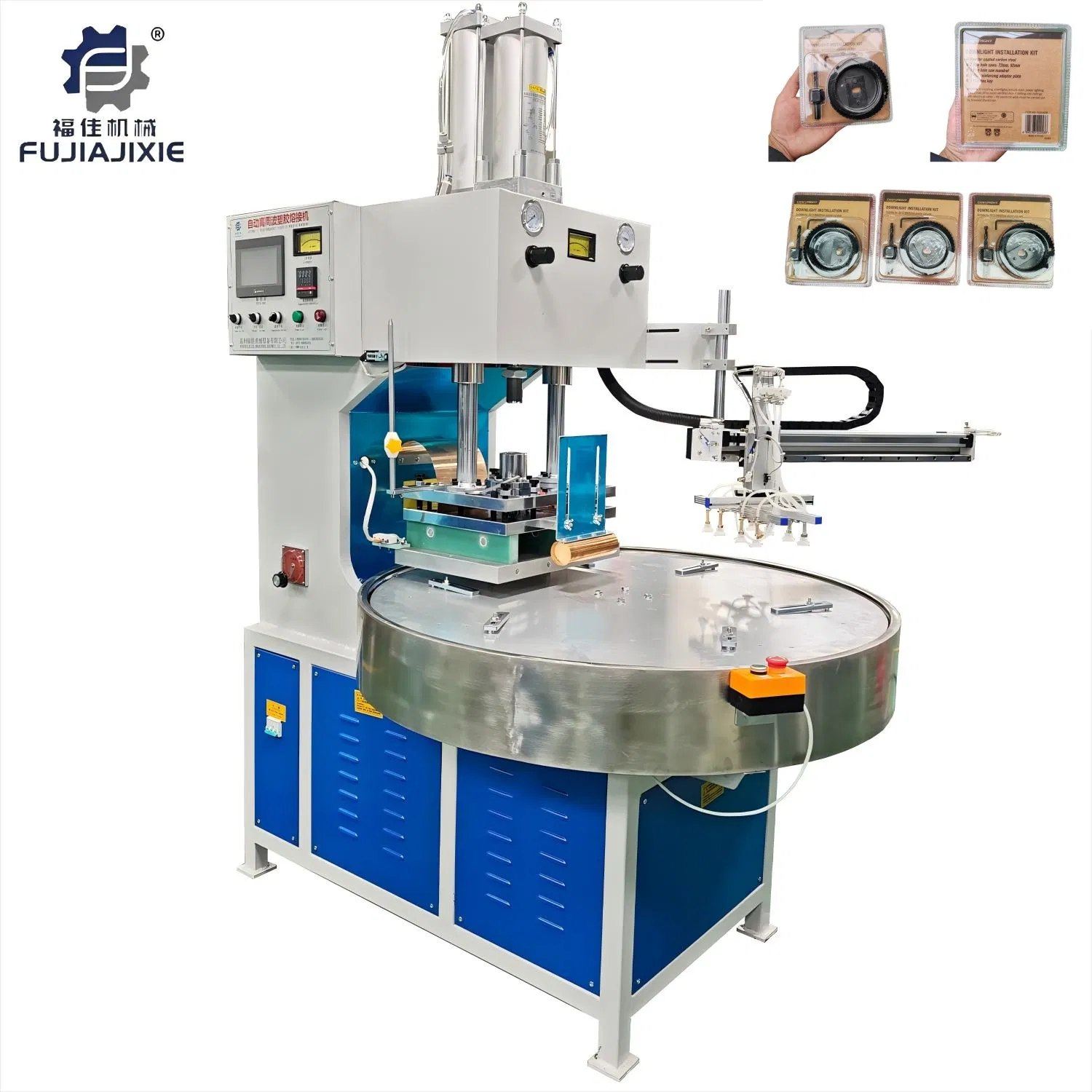

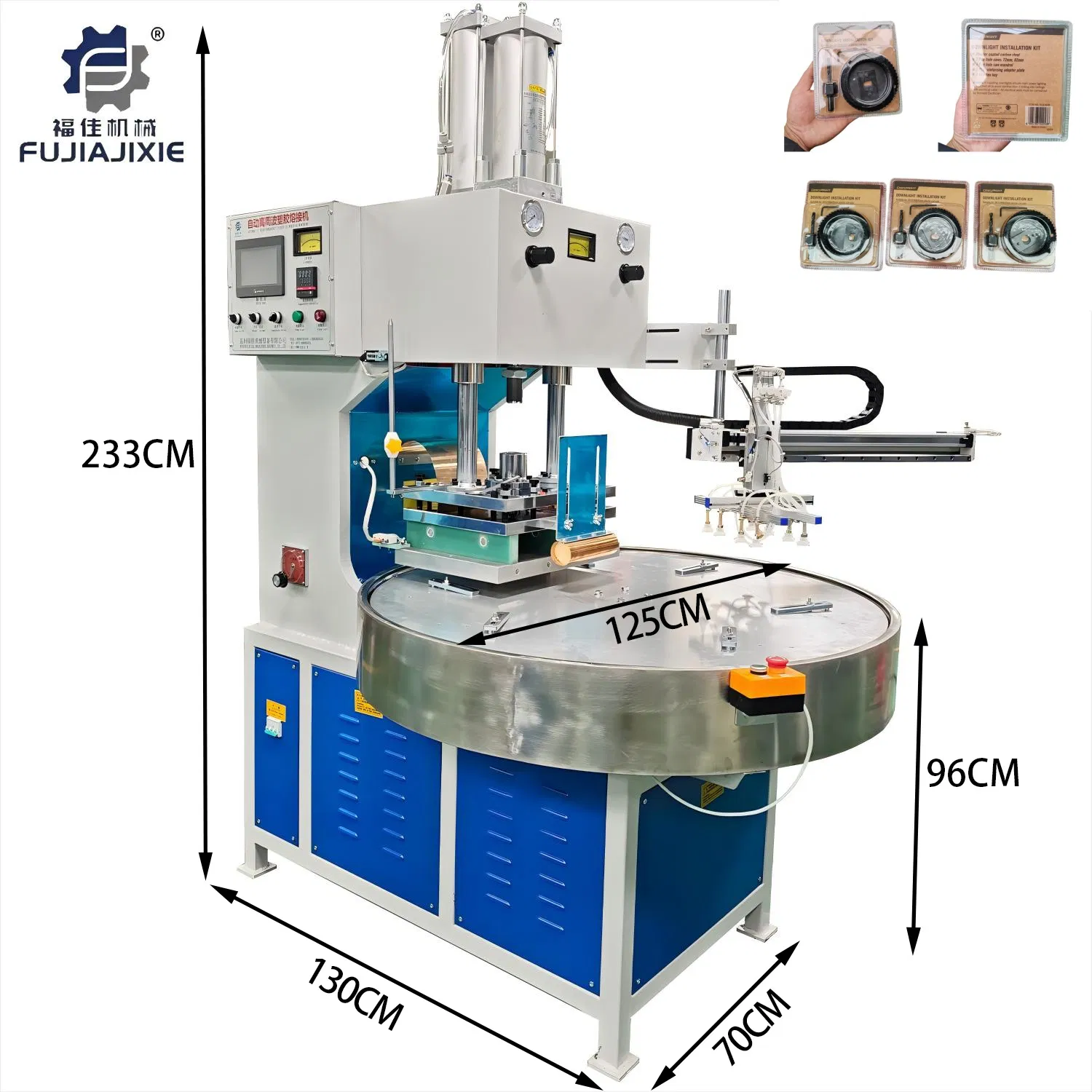

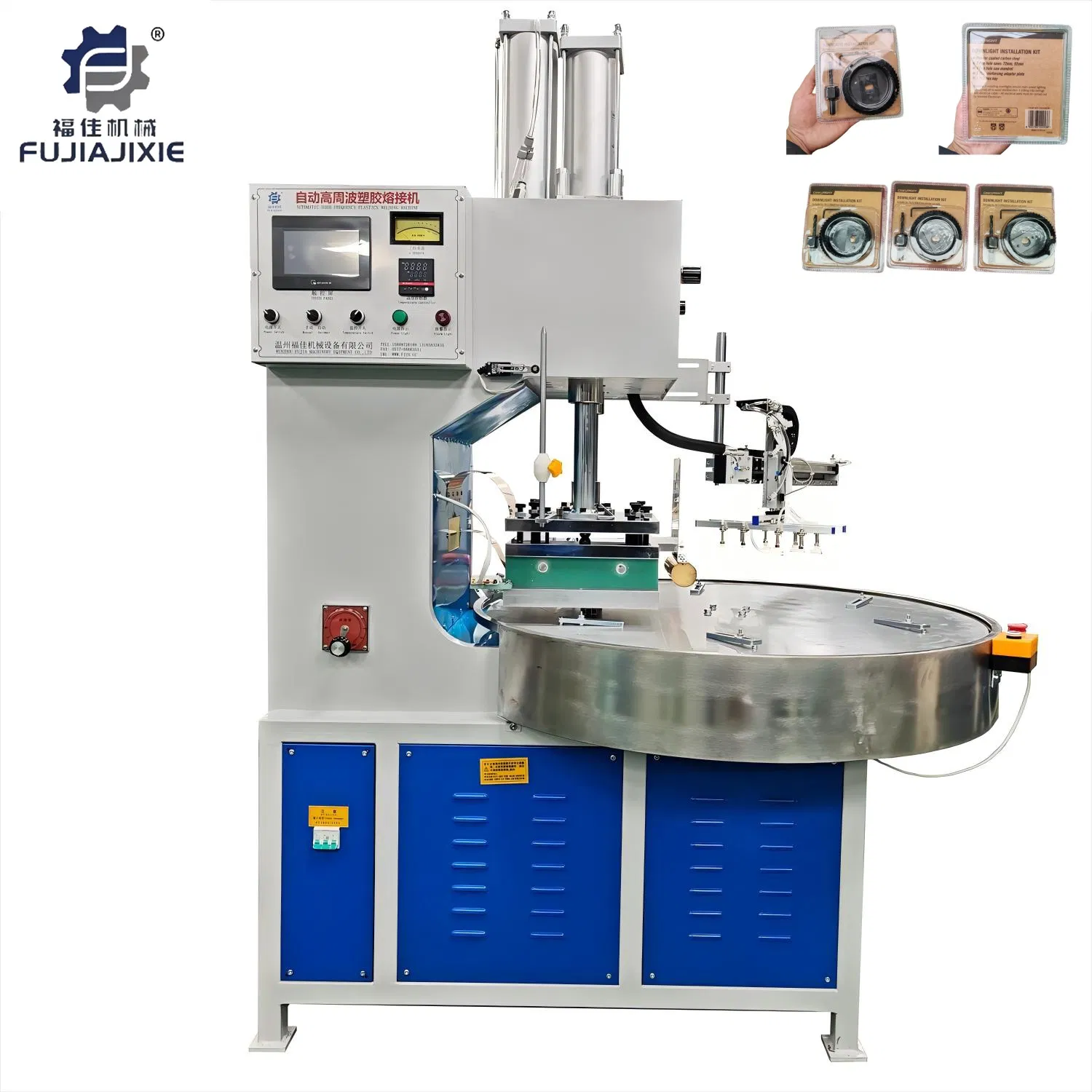

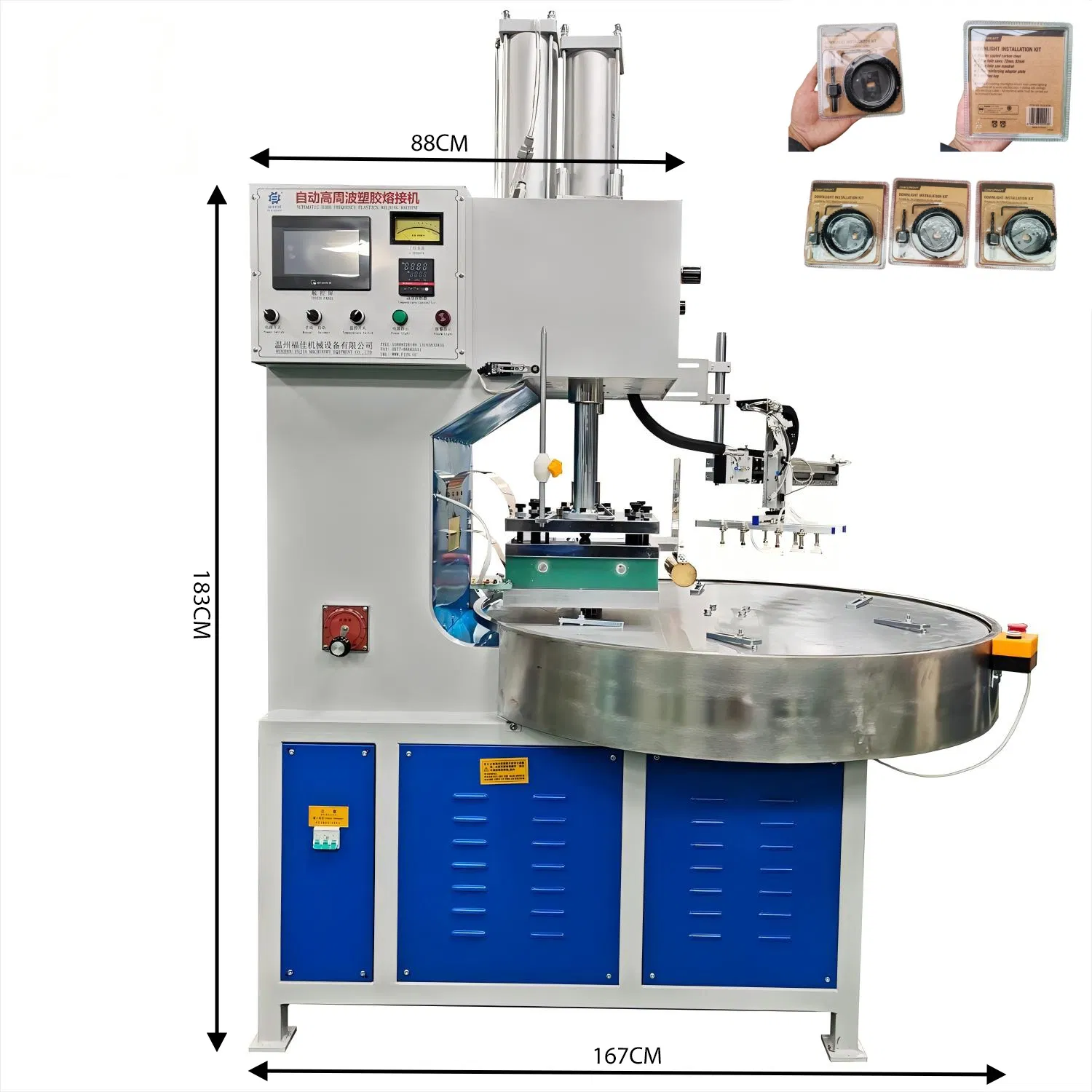

Automatic Rotary Indexing High Frequency Plastic Fusion and Cutting System for Blister Clamshell

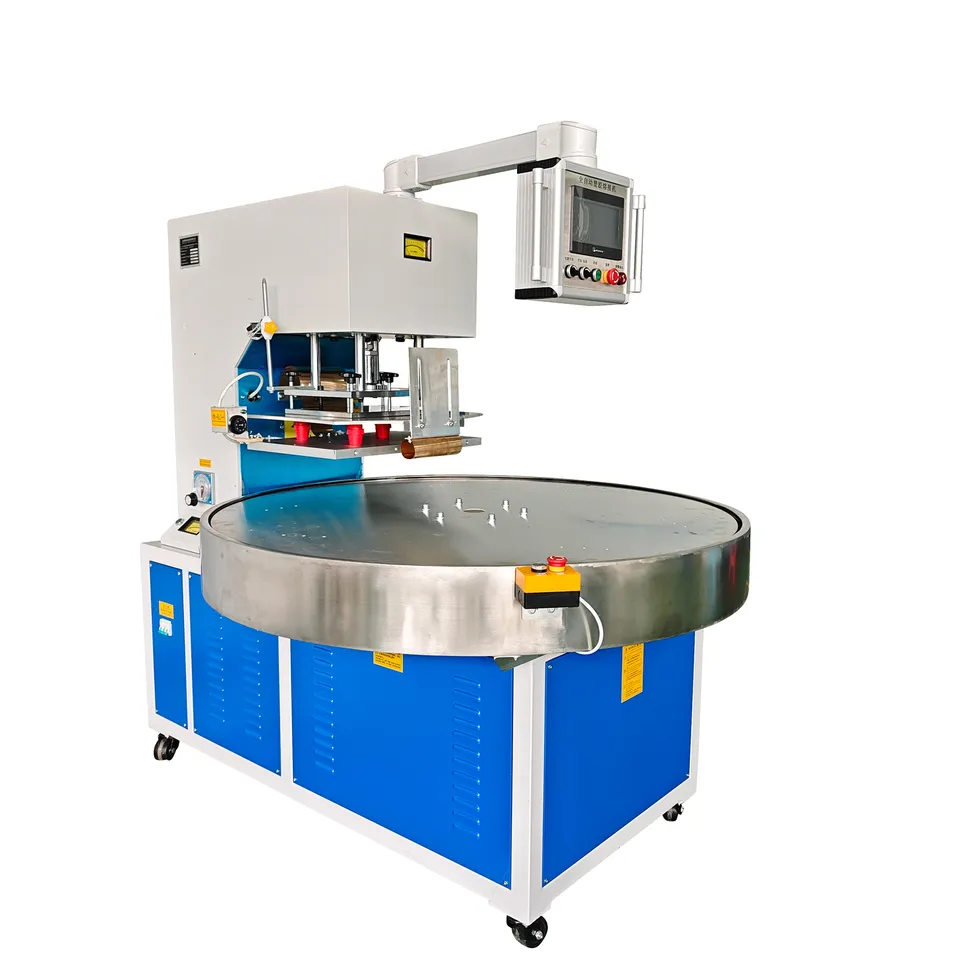

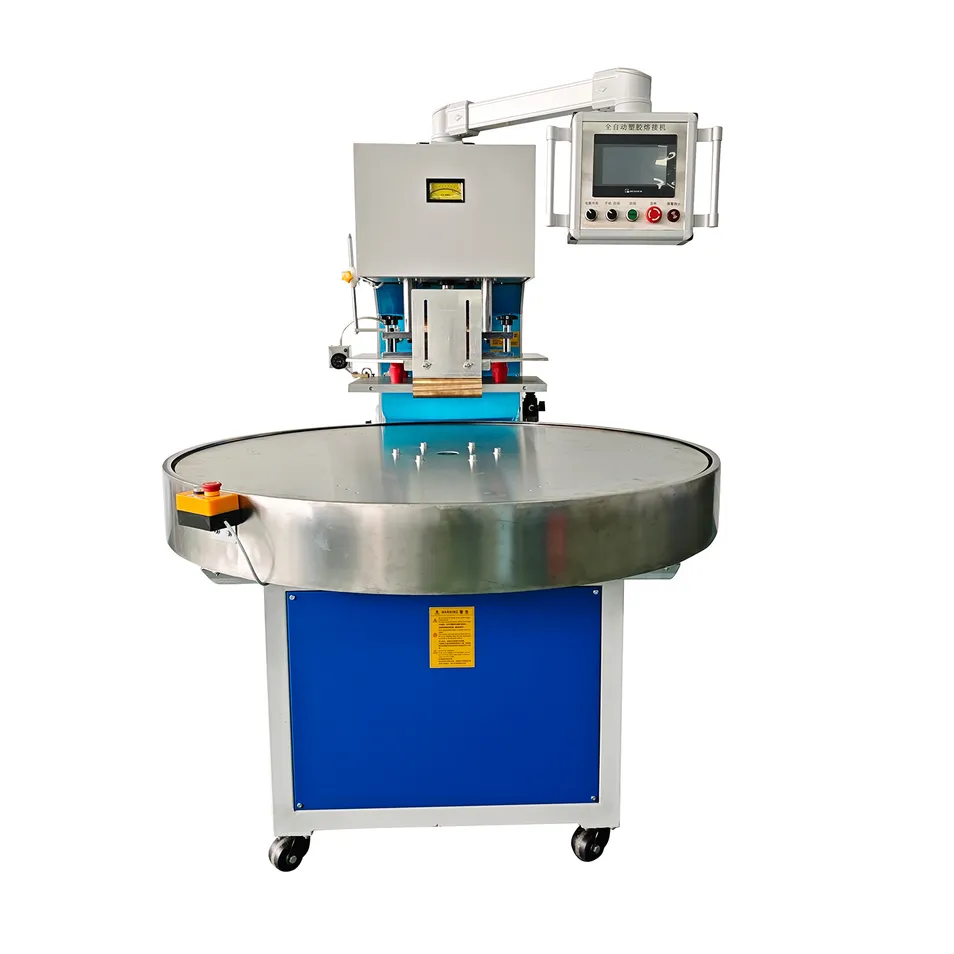

This rotary high-frequency plastic welder features semi-auto human-machine operation with 3-station rotary disc and PLC touch control. Core welding and cooling run automatically with manual loading/unloading for efficient cyclic production. Accurate parameter settings guarantee stable welding precision and product consistency. Combining manual flexibility and auto-process stability, it suits mass welding of diverse plastic products.
| Model | FJ-HRA03-5A | FJ-HRA03-8A | FJ-HRA03-10A | FJ-HRA03-15A |
|---|---|---|---|---|
| Output Power | 5000W | 8000W | 10000W | 15000W |
| Oscillator Tube | 7T85RB | 7T69RB | E3069 | 8T85RB |
| Input Power | 8kVA | 15kVA | 18kVA | 25kVA |
| Upper Press Plate | 200×350mm | 320×520mm | 350×550mm | 500×700mm |
| Rotary Disc Dia. | 990mm | 1100mm | 1200mm | 1500mm |

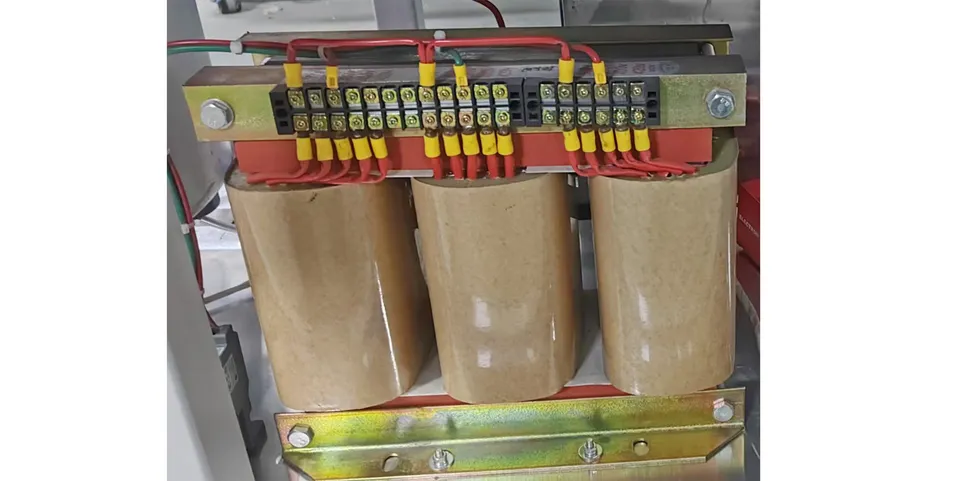

Converts industrial power into 27.12MHz standard high-frequency current. Internal molecules vibrate rapidly to produce heat, realizing fast welding under pressure with no adhesive needed.

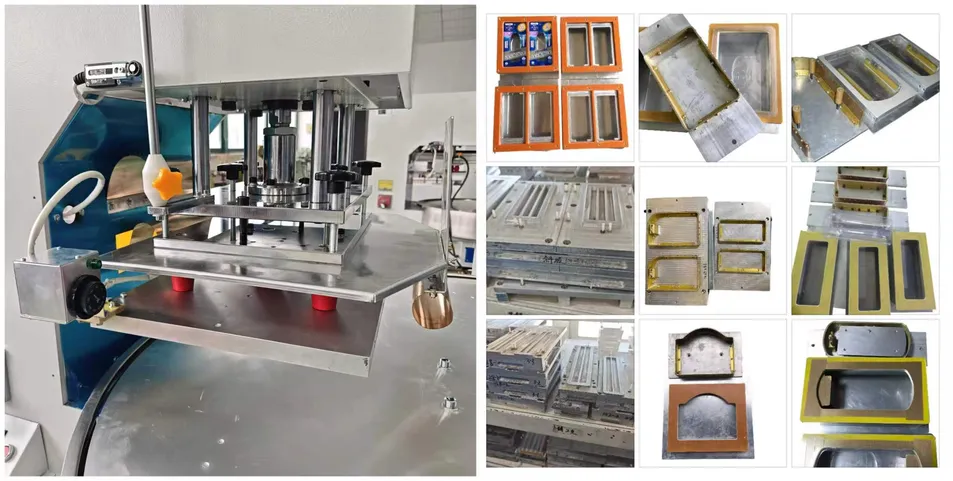

Customized for blister packaging and leather embossing. Precise positioning and quick-lock design enable easy installation with a three-station lower mold system for high efficiency.

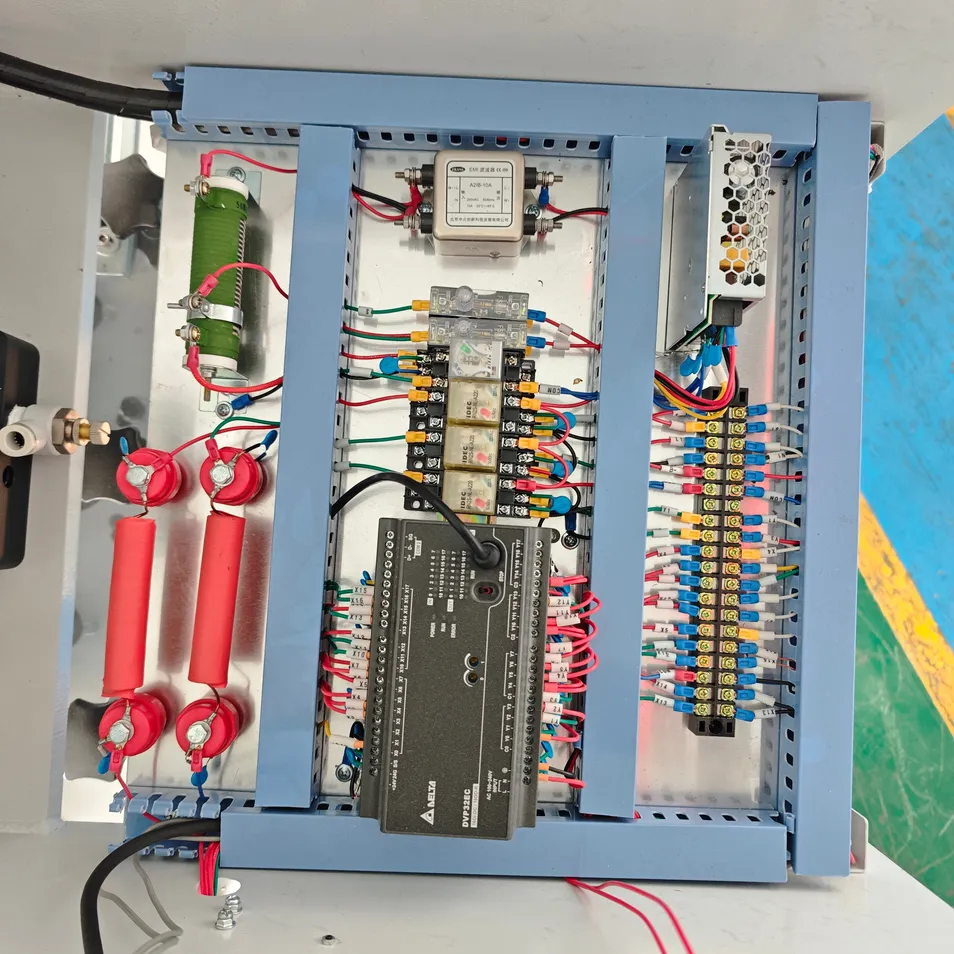

Adopts high-resolution HMI for easy adjustment. Spark detection and overcurrent protection guarantee production safety and consistent welding quality.

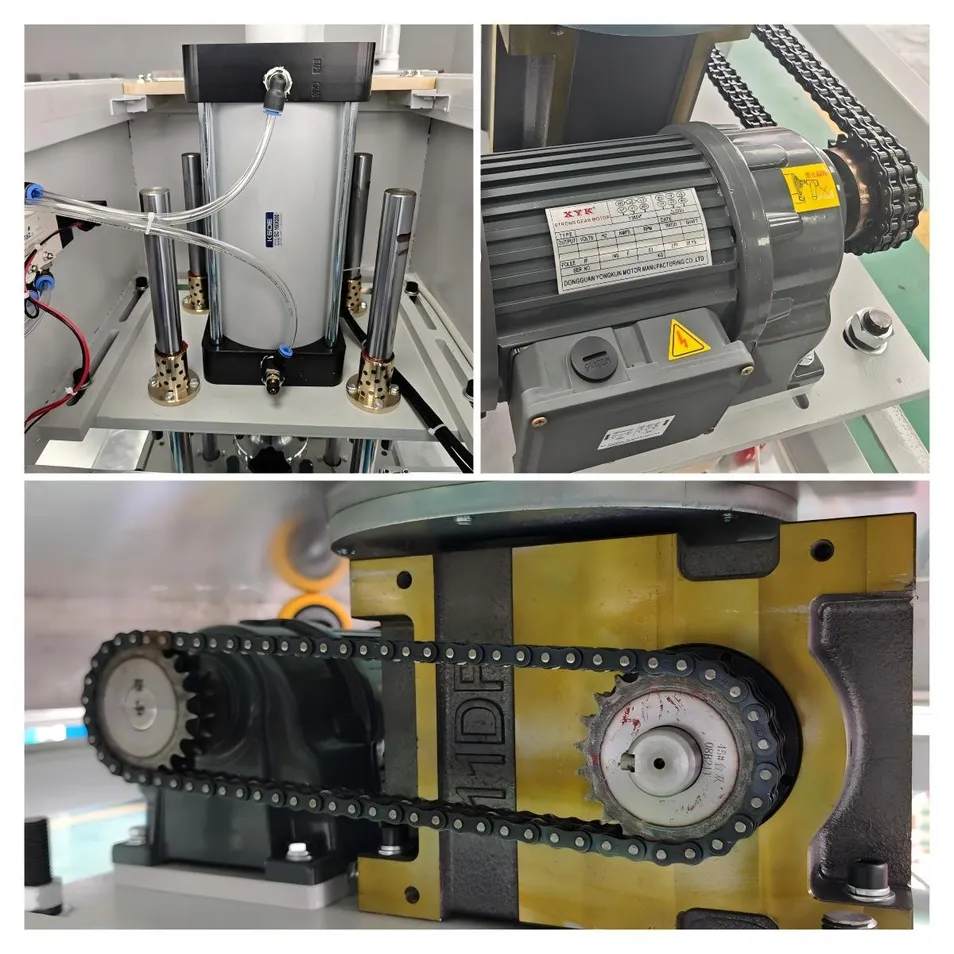

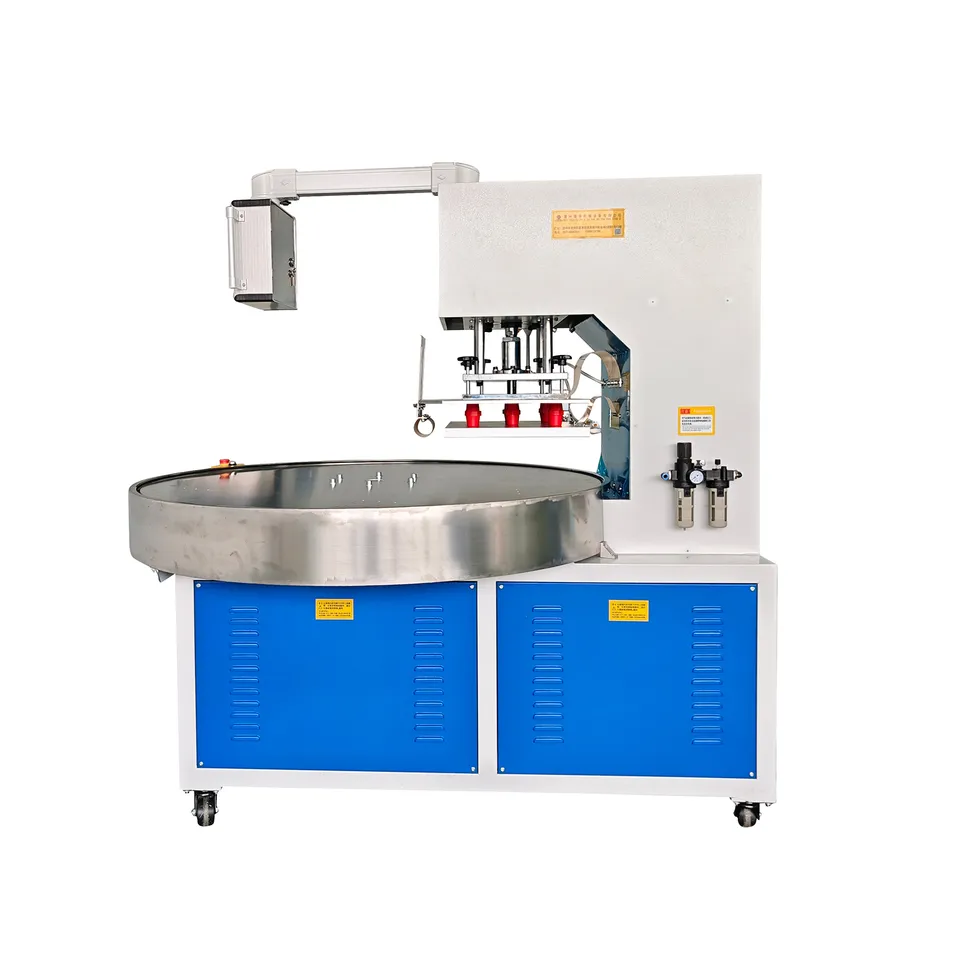

Uses high-torque reduction motor and precision cam indexer. Four-column guide structure realizes zero-clearance indexing for efficient mass production.
Applies to high-frequency welding, heat sealing and embossing of PVC films (≥30% PVC) and composite materials. Ideal for:

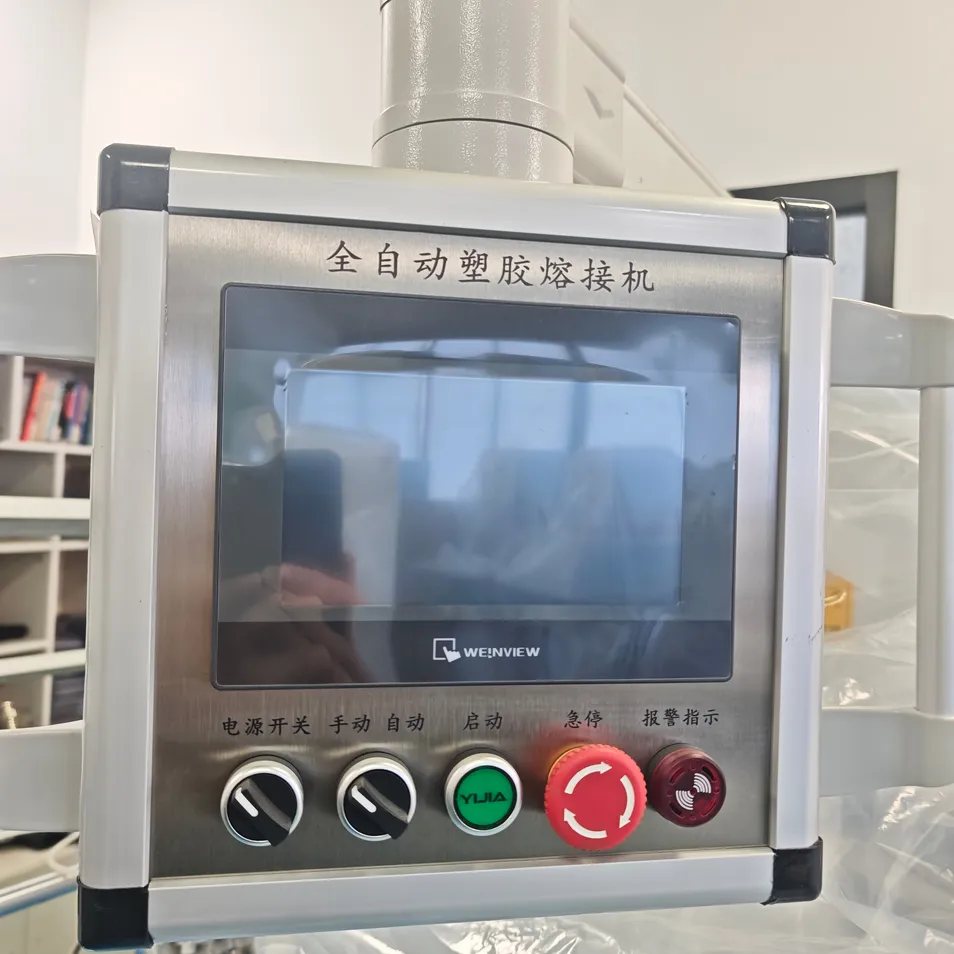

Interlocked HMI touch screen with physical buttons for intuitive configuration and real-time monitoring of machine status and fault warnings.

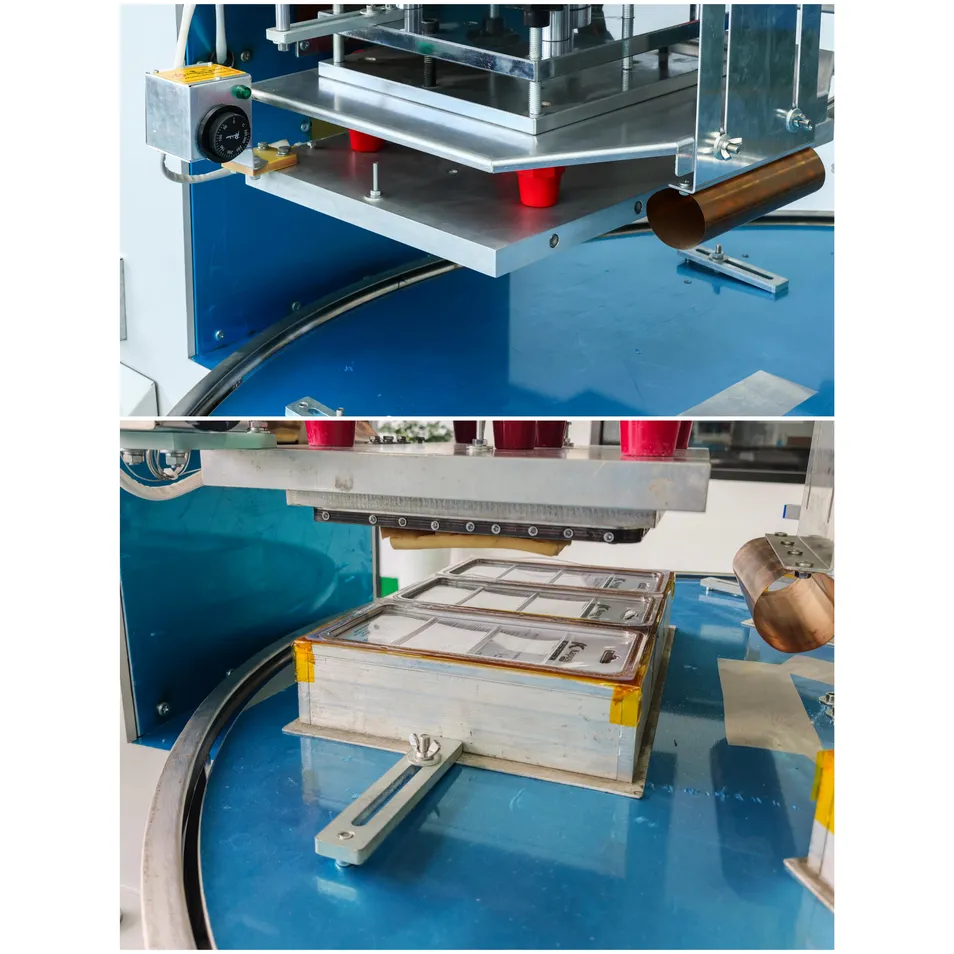

High-frequency electrodes with dedicated fixtures ensure even compression and stable energy release for consistent sealing precision.

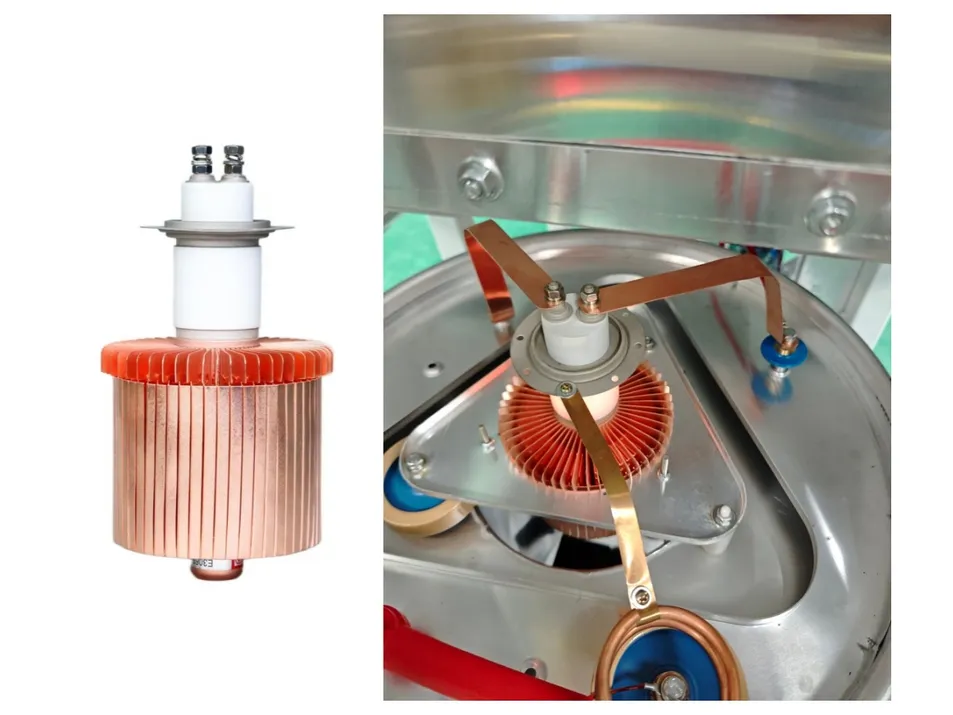

Vacuum electron tubes engineered for industrial application, converting high-voltage DC into stable 27.12 MHz or 40.68 MHz waves.

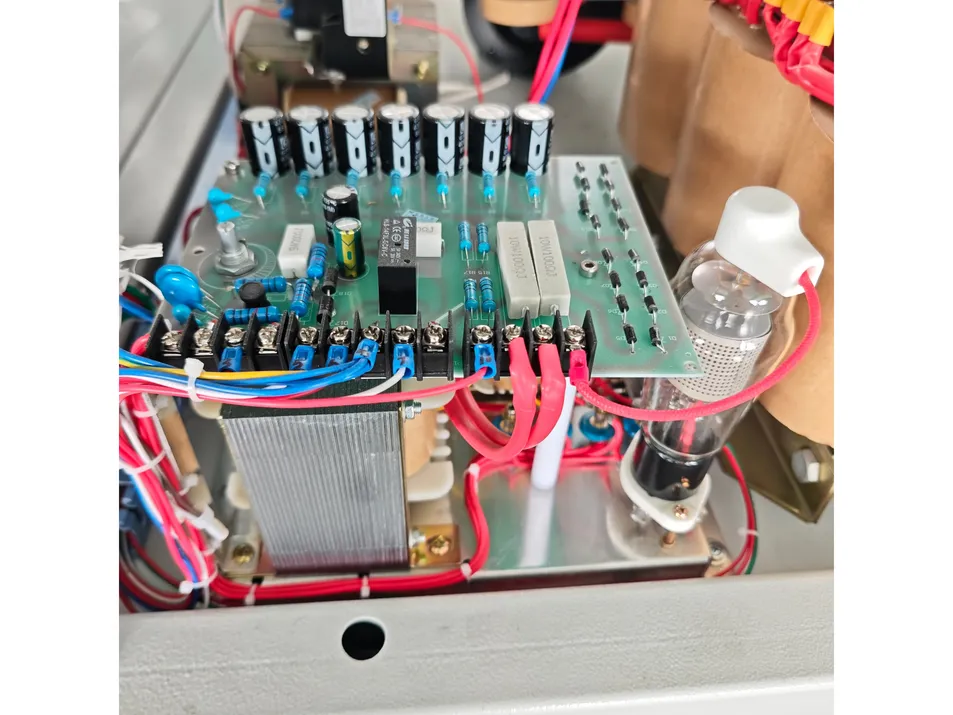

NL-5557 tube triggers relays to cut off power within milliseconds of arcing, protecting molds and electronic components from damage.
