Mutrade CE Vertical Rotary Smart Parking System

Customization:	Available
Level:	Max 11 Levels
Parking Post:	9-24 Posts

Send Inquiry

Product Description

Product Overview

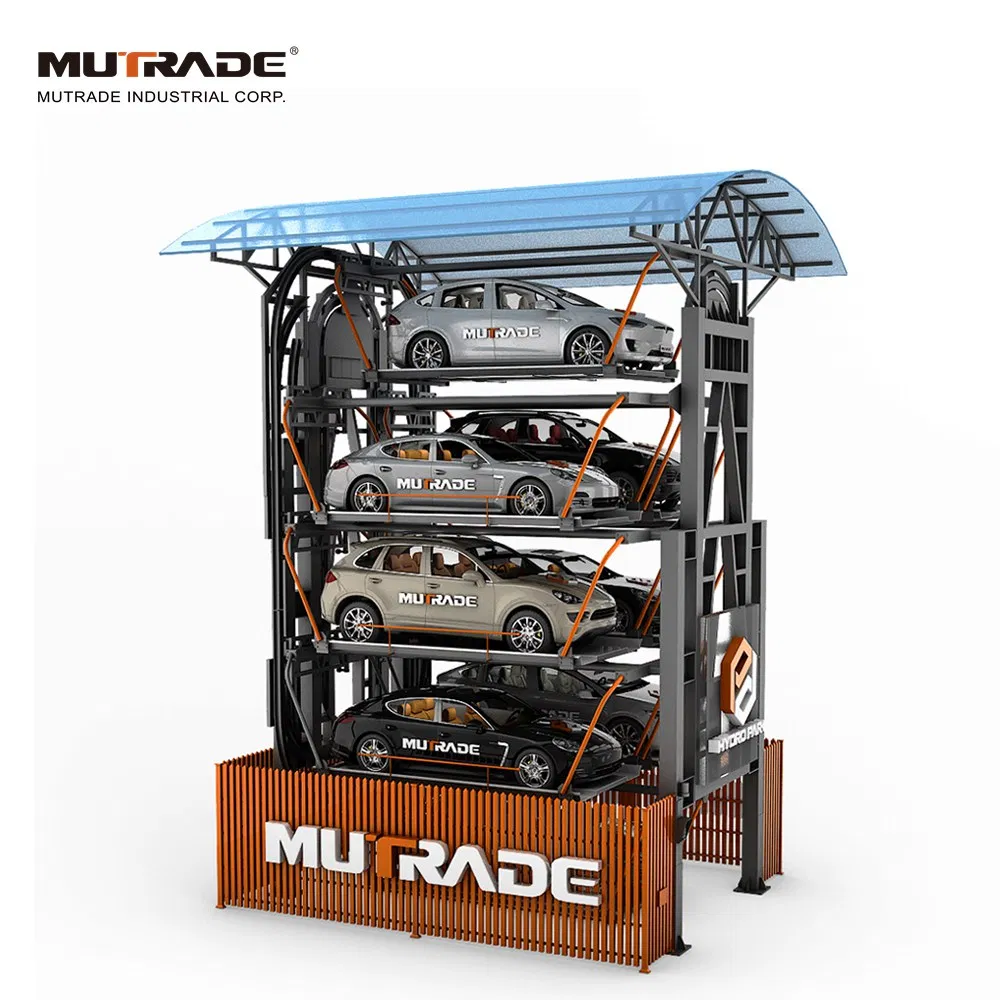

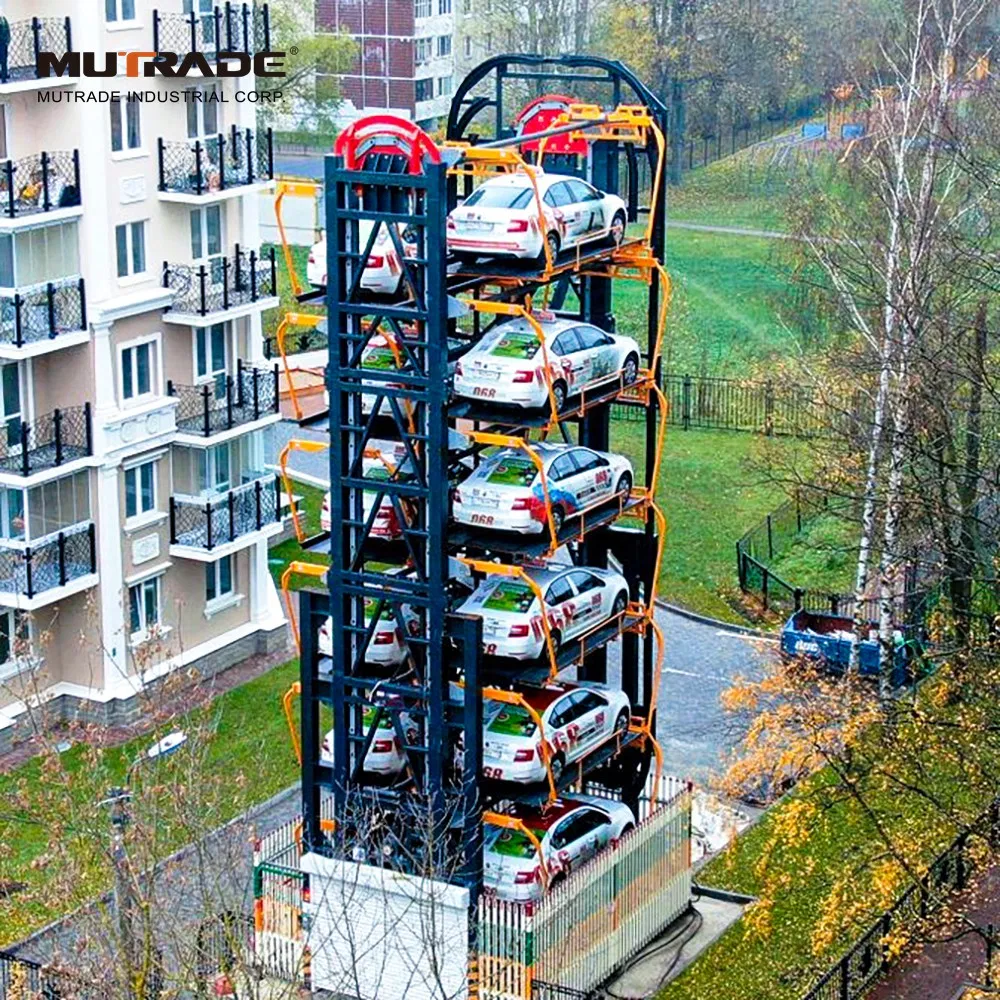

Vertical Rotary Smart Parking System

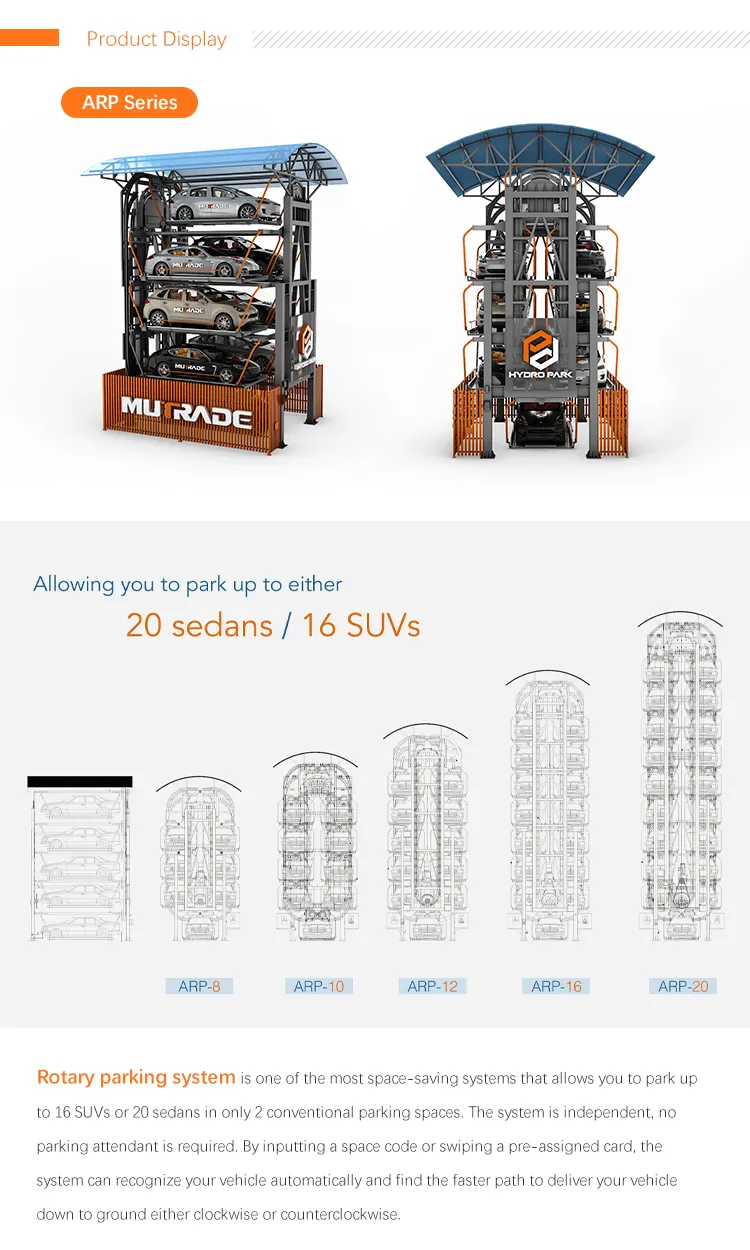

Rotary parking system is one of the most space-saving systems that allow you to park up to 16 SUVs or 20 sedans in only 2 conventional parking spaces. The system is independent, no parking attendant is required.

By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to the ground either clockwise or counterclockwise.

Basic Specifications

Model NO.

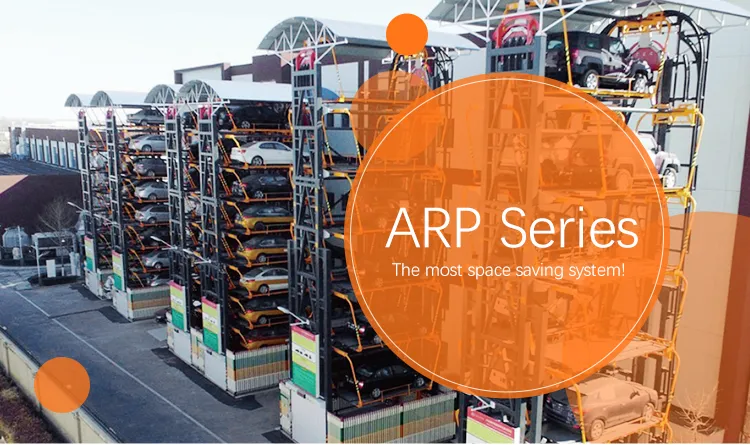

ARP series

Compatibility

Sedans or Suvs

Control System

Touch Screen Control

Installation

Outdoor

Lifting Mechanism

Hydraulic

Load Capacity

2000kg

Operation Mode

Fully Automatic

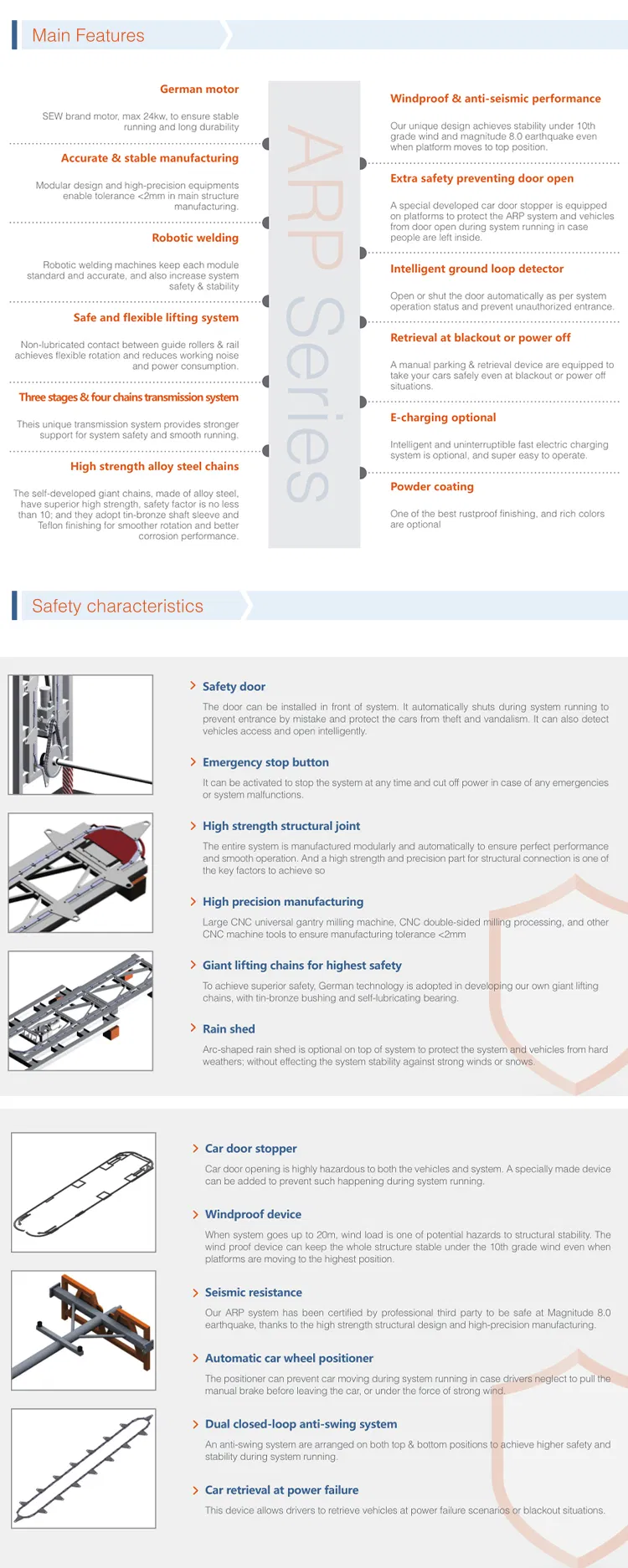

Safety Features

Anti-Collision Sensors, Emergency Stop, Fire Suppression, Overload Protection

Type

Rotary & Hydraulic Parking System

Material

Aluminum

Warranty

12 Months

Surface Treatment

Powder Coating

Certification

CE, ISO, CCC

Production Capacity

500 Sets Per Month

Technical Data Sheet

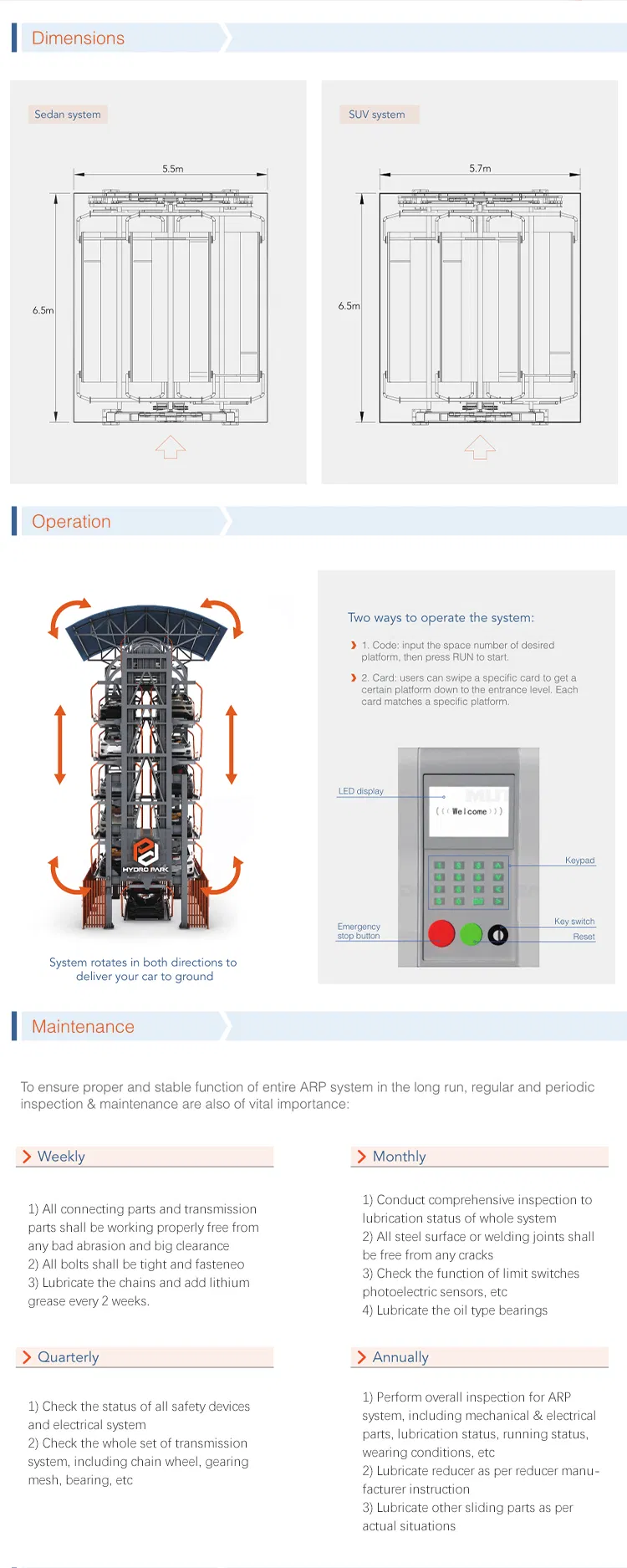

Models	Equipment Size (LWH)mm	Car Dimension (LWH)mm	Car Weight	Motor Power(Kw)	Interface	Control
8 cars (Sedan)	6500*5500	530020001550	2000Kg	5.5	Button+ IC Card	PLC
10 cars (Sedan)	6500*5500	530020001550	2000Kg	7.5	Button+ IC Card	PLC
12 cars (Sedan)	6500*5500	530020001550	2000Kg	9.2	Button+ IC Card	PLC
16 cars (Sedan)	6500*5500	530020001550	2000Kg	15	Button+ IC Card	PLC
20 cars (Sedan)	6500*5500	530020001550	2000Kg	22	Button+ IC Card	PLC
SUV TYPE
8 cars (SUV)	6500*5700	530019001950	2350Kg	5.5	Button+ IC Card	PLC
12 cars (SUV)	6500*5700	530019001950	2350Kg	11	Button+ IC Card	PLC
16 cars (SUV)	6500*5700	530019001950	2350Kg	18.5	Button+ IC Card	PLC

Visual Presentation

Professional Parking Solutions

We are one of the earliest professional mechanical parking solution providers. We are committed to providing the most suitable and effective parking solutions to our customers all over the world. We develop, design and manufacture mechanical parking equipment like 2 post parking lift, four-post car lift, stacker parking lift, puzzle parking system, car turntable, and scissor car lift.

Our competitive advantages include:

🌸 Advanced Technology: Leading edge mechanical designs.
🌸 Precise Manufacture: Laser cutting and robotic processing.
🌸 Strong Support: Comprehensive technical assistance.
🌸 Customer Oriented: Tailored solutions for specific needs.

Frequently Asked Questions

How many cars can this rotary system accommodate?

The system is highly flexible and can accommodate up to 16 SUVs or 20 sedans within the space of just two conventional parking spots.

Is an operator required to run the system?

No, the system is fully independent and automatic. Users can operate it via a touch screen, space code, or IC card.

What safety features are integrated?

The system includes anti-collision sensors, emergency stop buttons, fire suppression systems, and overload protection to ensure maximum safety.

Can the system be installed outdoors?

Yes, the system is designed for outdoor installation with a durable powder-coated or hot-dipped galvanized finish for weather resistance.

What is the power source and voltage?

The system is driven by a hydraulic cylinder/motor and typically operates on customized voltage (standard 24V for control) to suit local requirements.

What is the warranty period for the equipment?

We provide a 12-month warranty along with lifetime after-sales service support for all our parking systems.
