China Manufacture Vertical Rotary Parking System

1 / 5

China Manufacture Vertical Rotary Parking System

Customization:	Available
Level:	Max 11 Levels
Parking Post:	9-24 Posts

Send Inquiry

Product Description

Technical Specifications

Model NO.

ARP series

Compatibility

Sedans or SUVs

Control System

Touch Screen / IC Card / Button

Installation

Outdoor

Lifting Mechanism

Hydraulic

Load Capacity

2000kg

Operation Mode

Fully Automatic

Safety Features

Anti-Collision Sensors, Emergency Stop, Fire Suppression, Overload Protection

Voltage

24V / Customized

Surface Treatment

Powder Coating

Certification

CE, ISO, CCC

Warranty

5 Years for Structure, 1 Year for Equipment

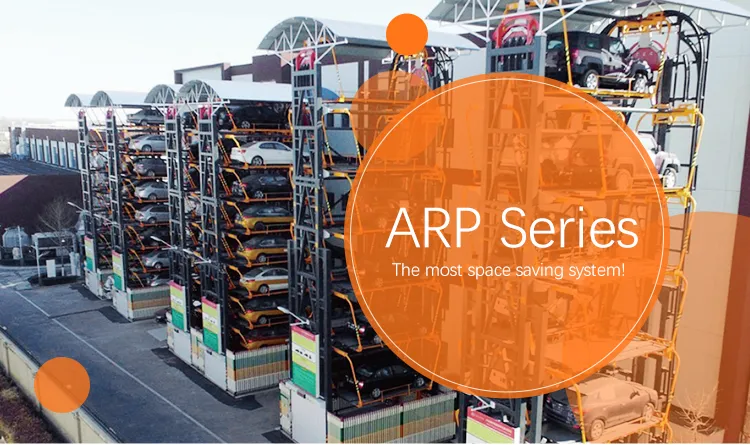

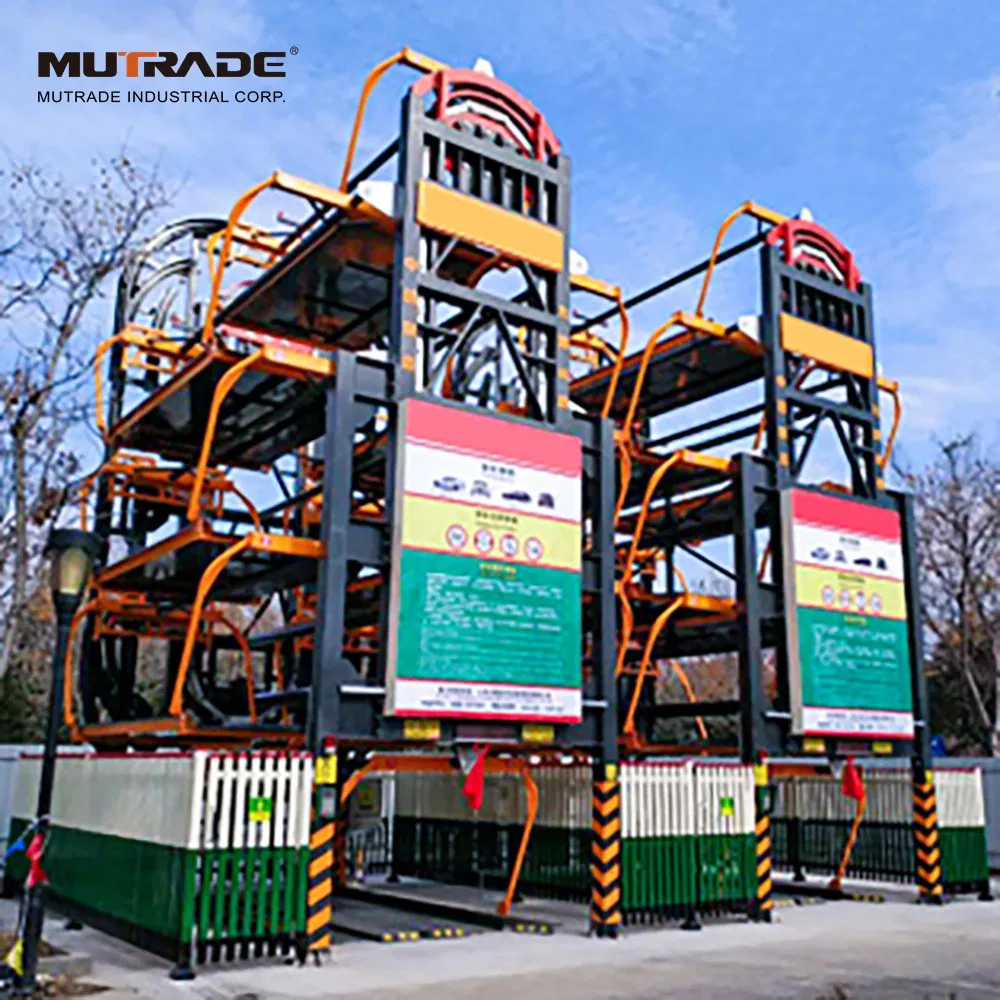

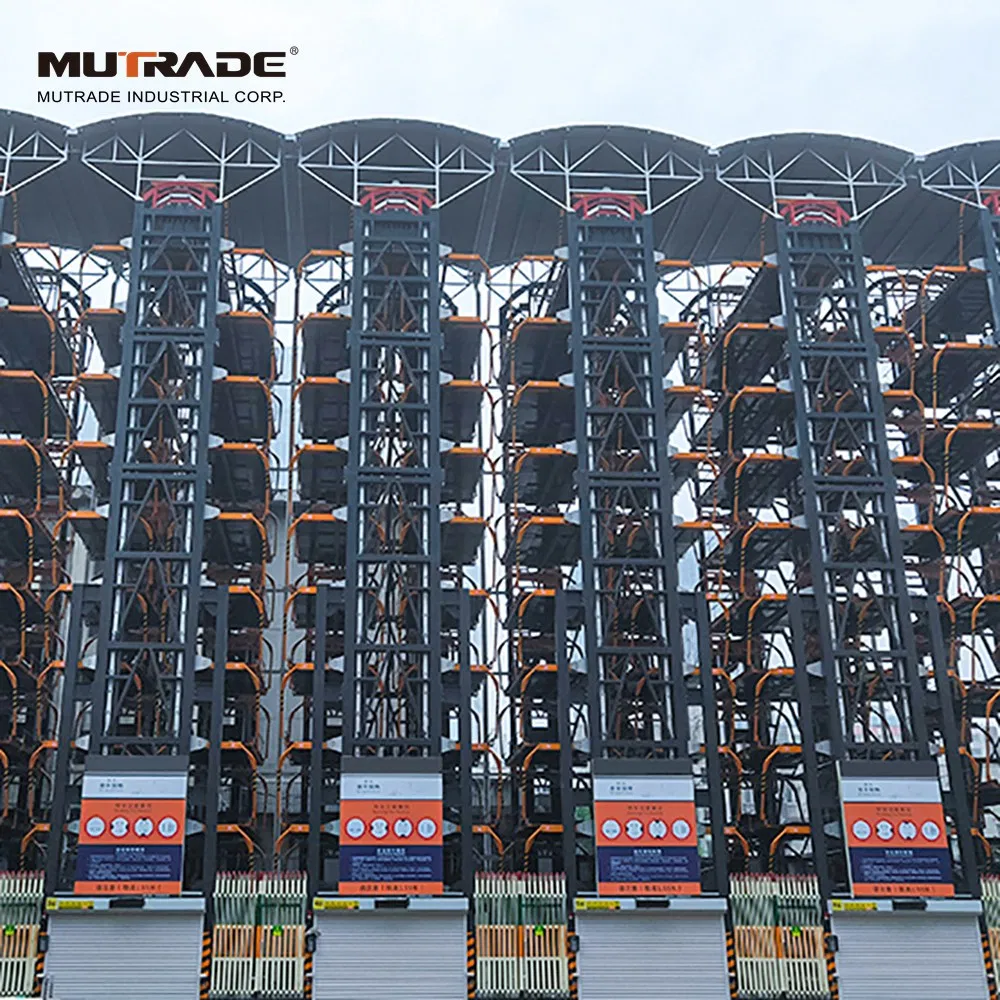

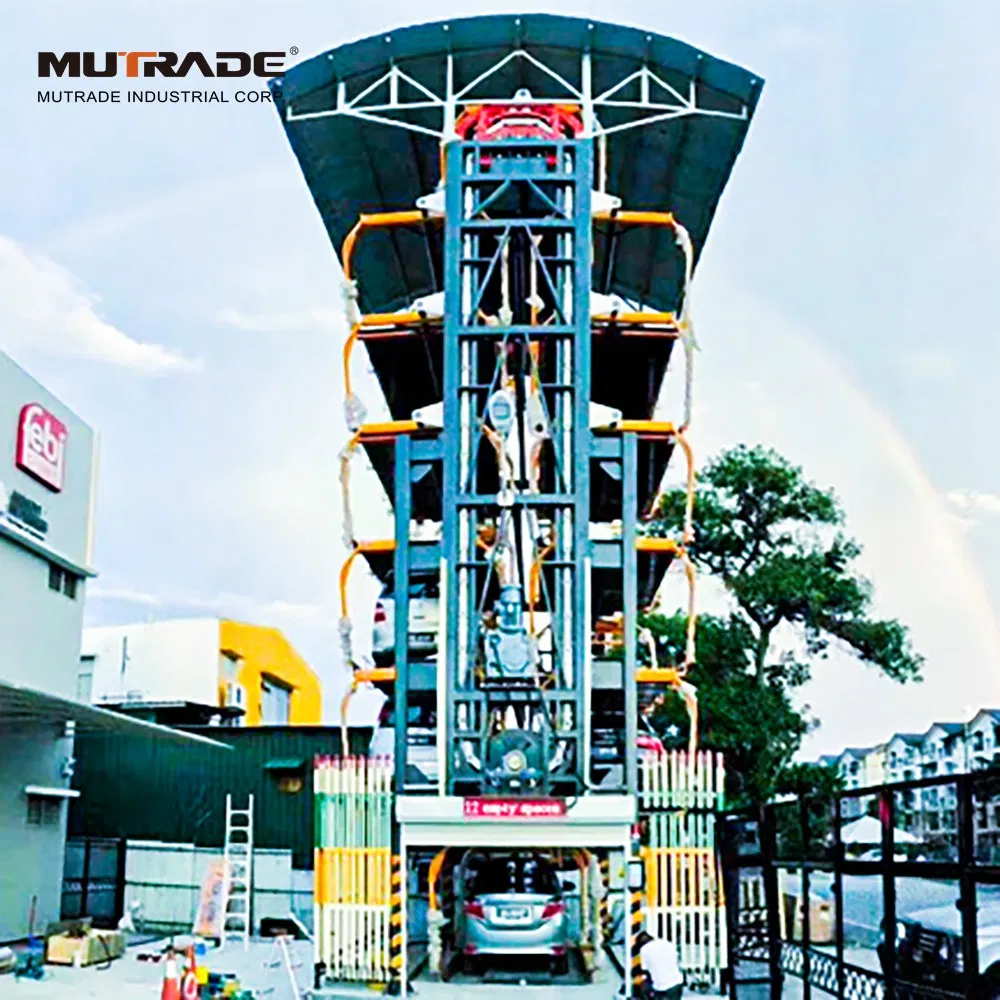

Vertical Rotary Parking System

🚀Space-Saving Innovation

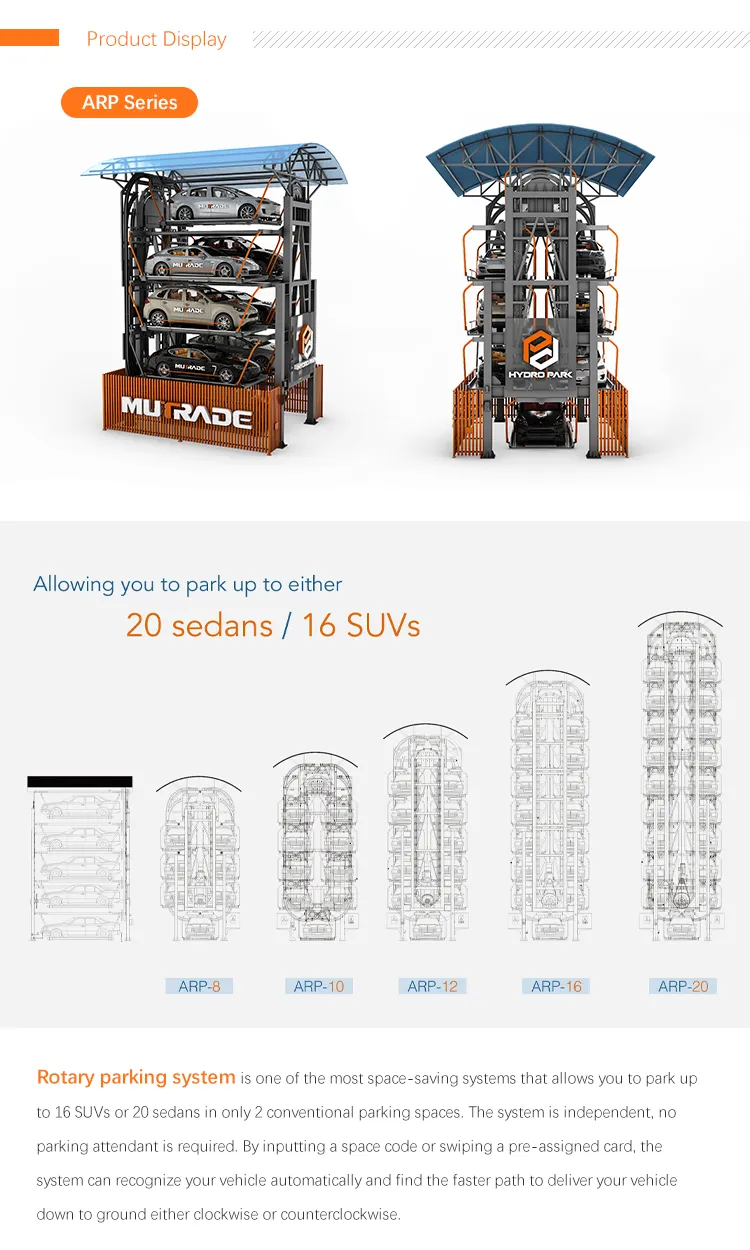

The rotary parking system is one of the most space-saving solutions available today. It allows you to park up to 16 SUVs or 20 sedans in the footprint of only 2 conventional parking spaces. This independent system requires no parking attendant, making it ideal for urban environments.

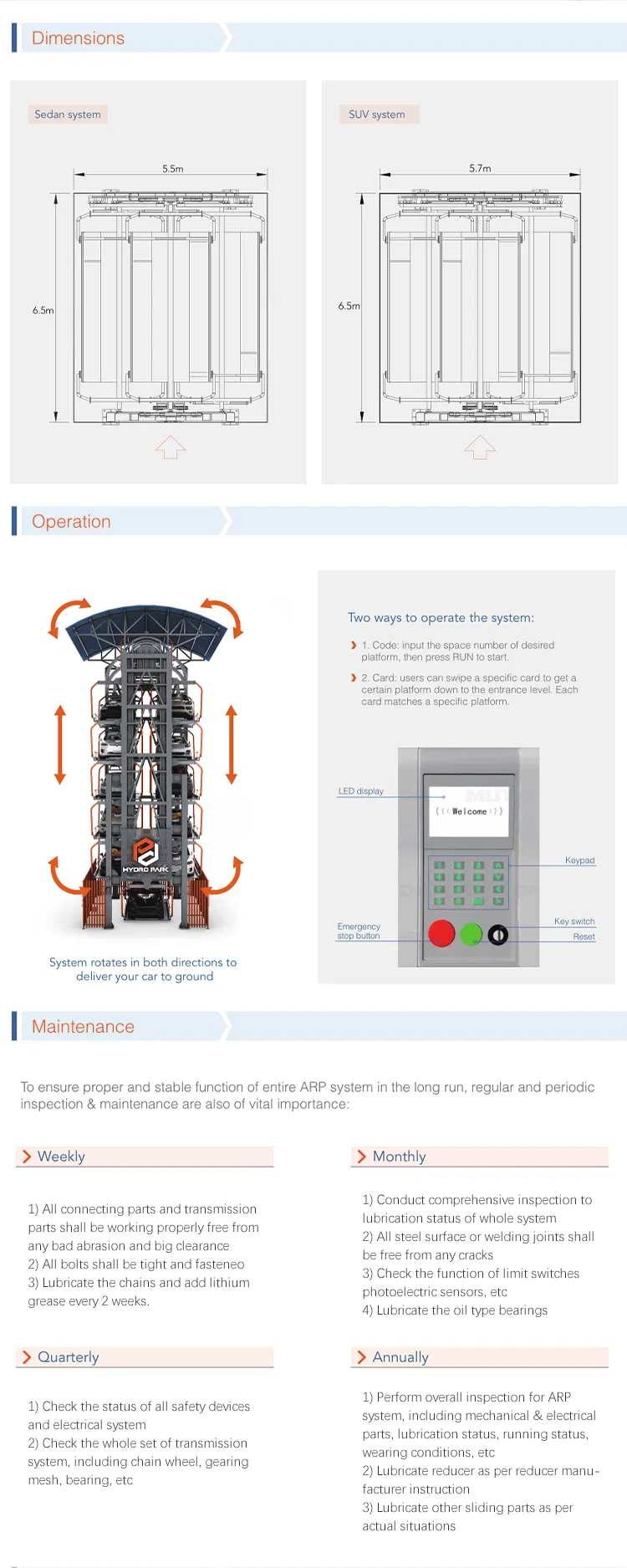

By inputting a space code or swiping a pre-assigned card, the system recognizes your vehicle automatically and identifies the fastest path to deliver your vehicle to the ground level, moving either clockwise or counterclockwise.

📊Technical Parameters

Models	Equipment Size (LWH)mm	Fit Car Dimension (LWH)mm	Max Car Weight	Motor Power (Kw)	Control Method
Sedan Type
8 cars	6500*5500	530020001550	2000Kg	5.5	PLC Control
12 cars	6500*5500	530020001550	2000Kg	9.2	PLC Control
20 cars	6500*5500	530020001550	2000Kg	22	PLC Control
SUV Type
8 cars	6500*5700	530019001950	2350Kg	5.5	PLC Control
12 cars	6500*5700	530019001950	2350Kg	11	PLC Control
16 cars	6500*5700	530019001950	2350Kg	18.5	PLC Control

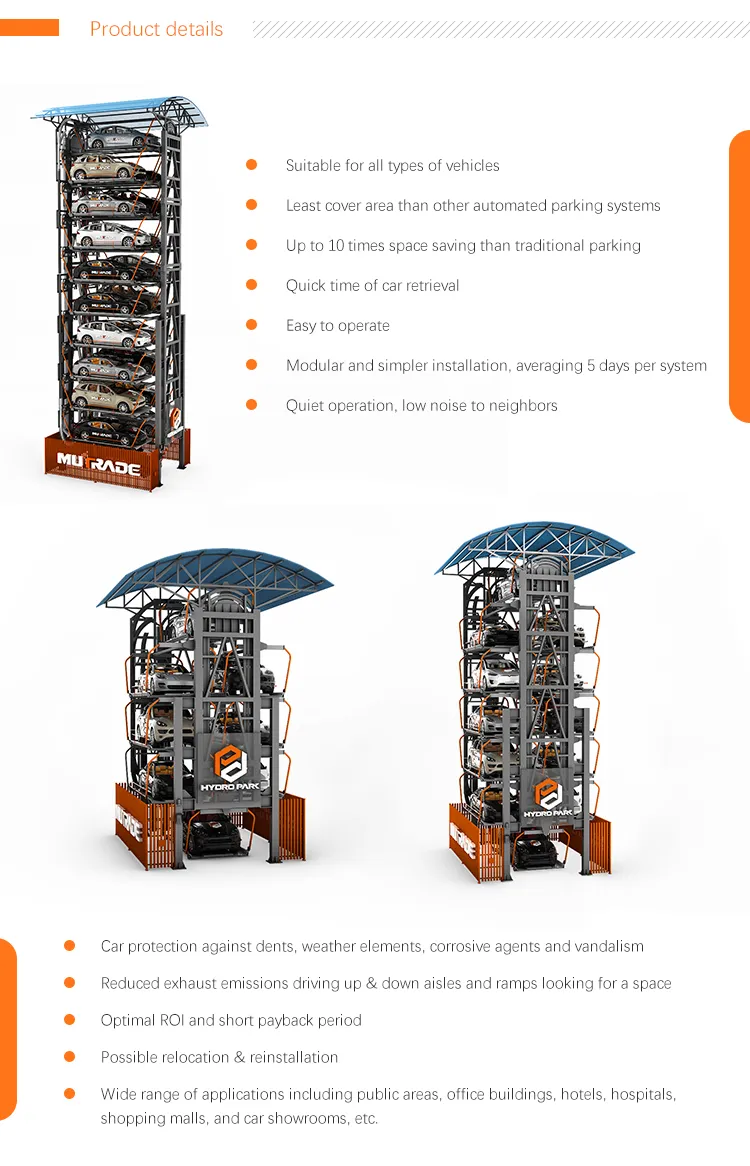

Professional Manufacturing

Our systems are produced using advanced technology including laser cutting and robotic welding to ensure high precision and durability. As a world-class manufacturer, we focus on:

Advanced Hydraulic & Mechanical Technology
Precise Manufacturing Processes
Comprehensive Safety Integration
Customer-Oriented Design Solutions

Frequently Asked Questions

1. How many cars can one rotary system accommodate?

Depending on the model chosen, the system can park between 8 to 20 sedans, or up to 16 SUVs, within the space of just two traditional parking spots.

2. Is the system suitable for outdoor installation?

Yes, the ARP series is designed for outdoor installation and features a durable powder-coated surface treatment to withstand various weather conditions.

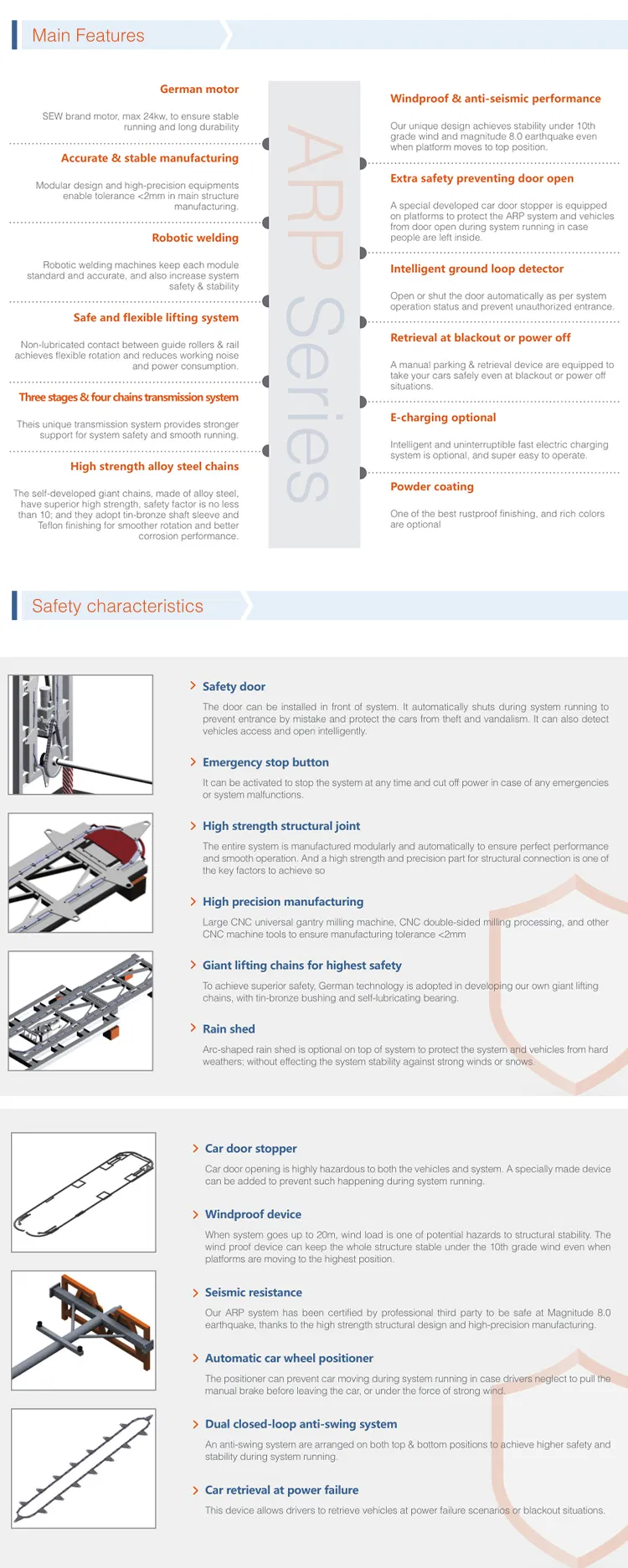

3. What are the primary safety features?

The system is equipped with multiple safety layers, including anti-collision sensors, emergency stop buttons, fire suppression systems, and overload protection devices.

4. How do users retrieve their vehicles?

Users can retrieve their vehicles quickly and easily by using a touch screen interface, swiping an IC card, or using simple button controls. The system automatically finds the shortest path to bring the car down.

5. What is the load capacity for each platform?

The standard load capacity is 2000kg for sedans and up to 2350kg for SUV-specific models, ensuring compatibility with most modern vehicles.

6. What kind of maintenance and warranty is provided?

We offer a 5-year warranty on the main structure and a 1-year warranty on the whole equipment. Lifetime after-sales support is also provided to ensure long-term operational efficiency.
