Hydraulic Four Post Car Stacker Simple Car Parking System

Still deciding? Get samples of $ !
Request Sample

Product Description

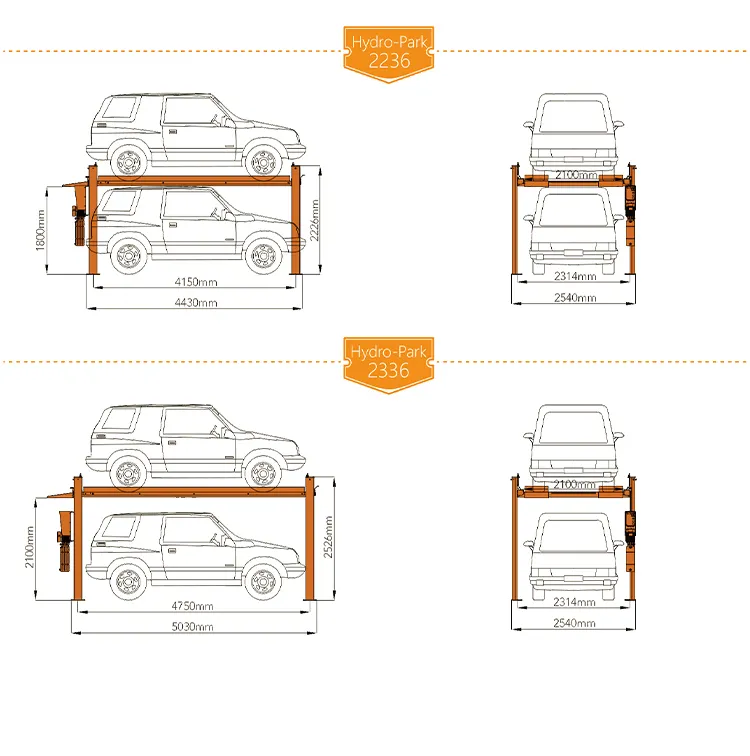

Technical Specifications

Model
HP2236 & HP2336
Capacity
3600kg
Material
Aluminum
Lifting Height
2.2 Meters, 1840mm
Safety Locks
Automatic Dynamic Locks
Vehicle Type
Sedans, SUVs
Drive Mode
Hydraulic Cylinder + Steel Cable
Total Width
2664mm
Total Height
2140mm
Voltage
220V
Surface
Powder Coating
Warranty
12 Months / 5 Years Structure

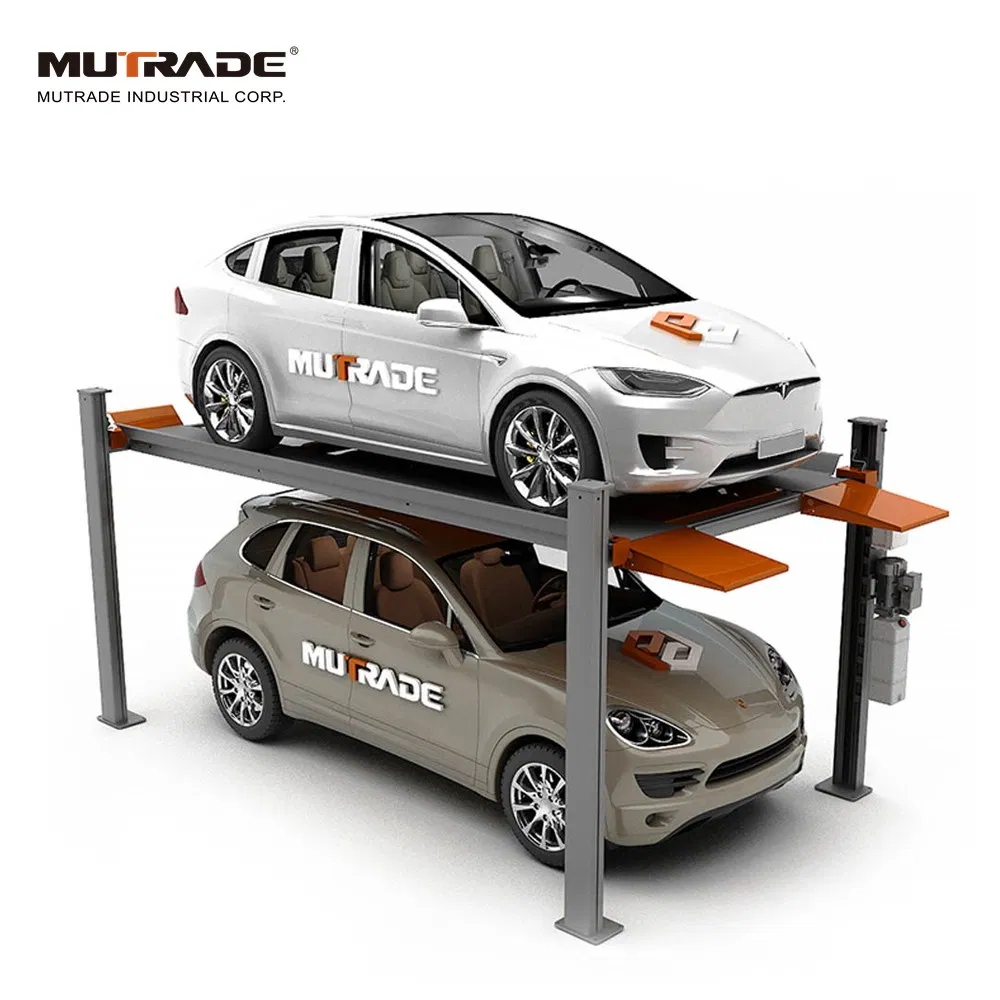

Product Overview

Hydro-Park 2236 is a sophisticated Four Post Parking Lift engineered for efficiency and reliability. As a valet-style parking equipment featuring an advanced electrical control system, it operates with vertical movement to maximize space. This hydraulic chain-driven system is perfectly suited for both luxury sedans and family SUVs, requiring the ground area to be cleared only during the lowering of the upper platform.

Frequently Asked Questions

What is the maximum lifting capacity?

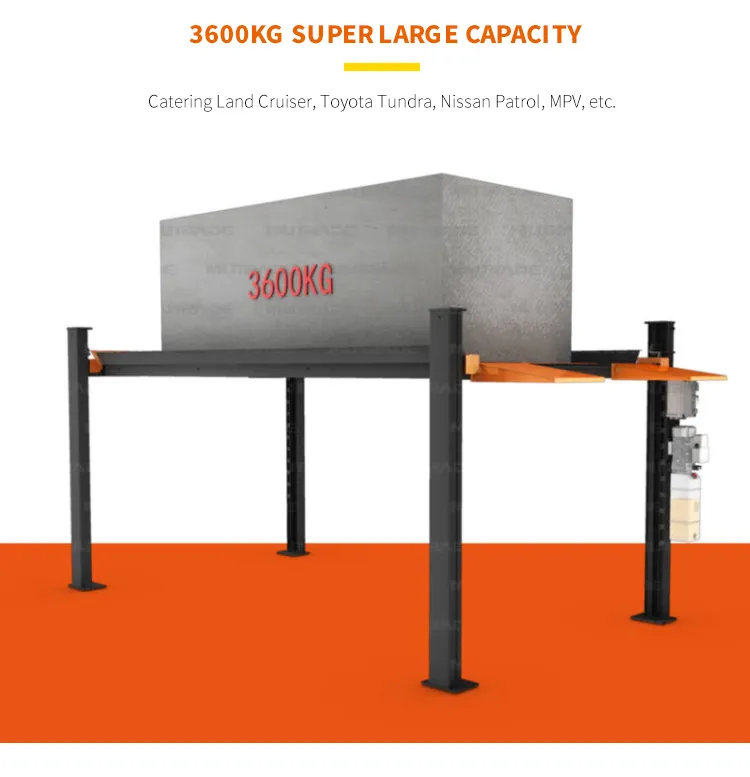

The HP2236 model features a robust lifting capacity of 3600kg, making it suitable for most standard vehicles.
Is this lift compatible with SUVs?
Yes, the design is specifically compatible with both sedans and small SUVs.

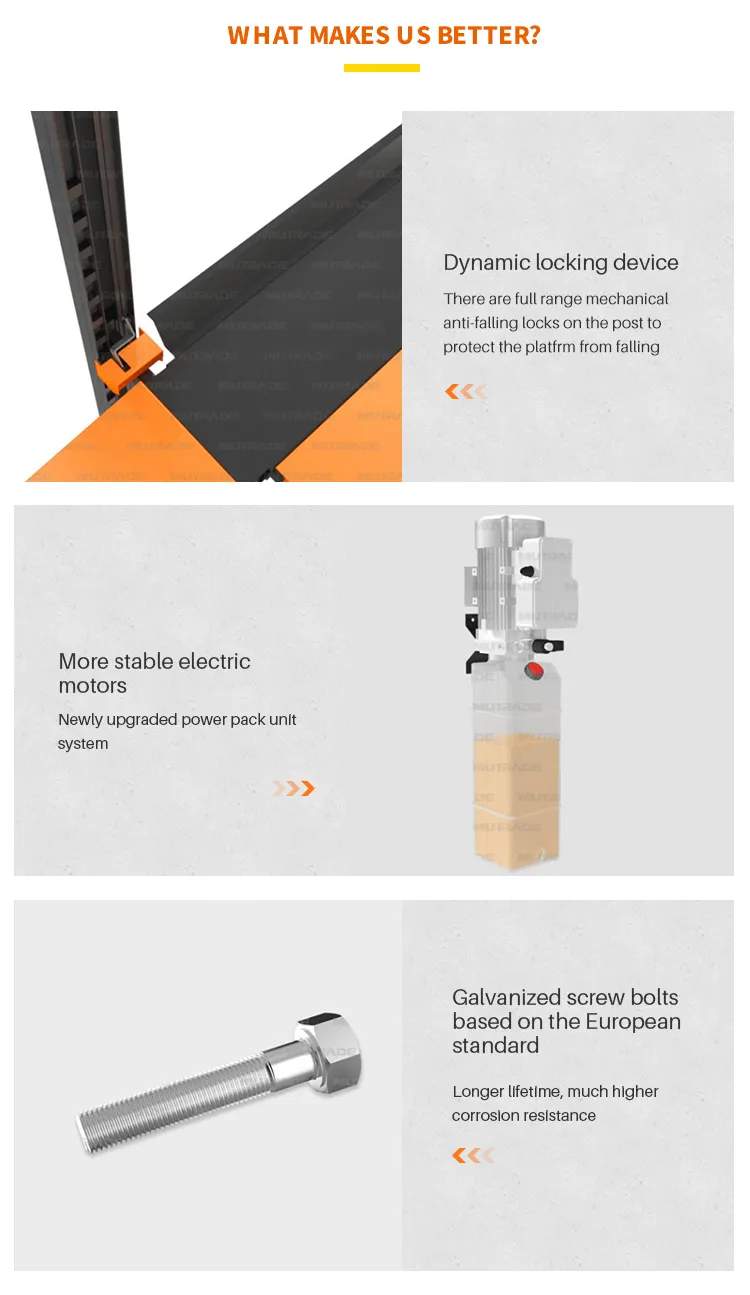

What kind of safety features are integrated?

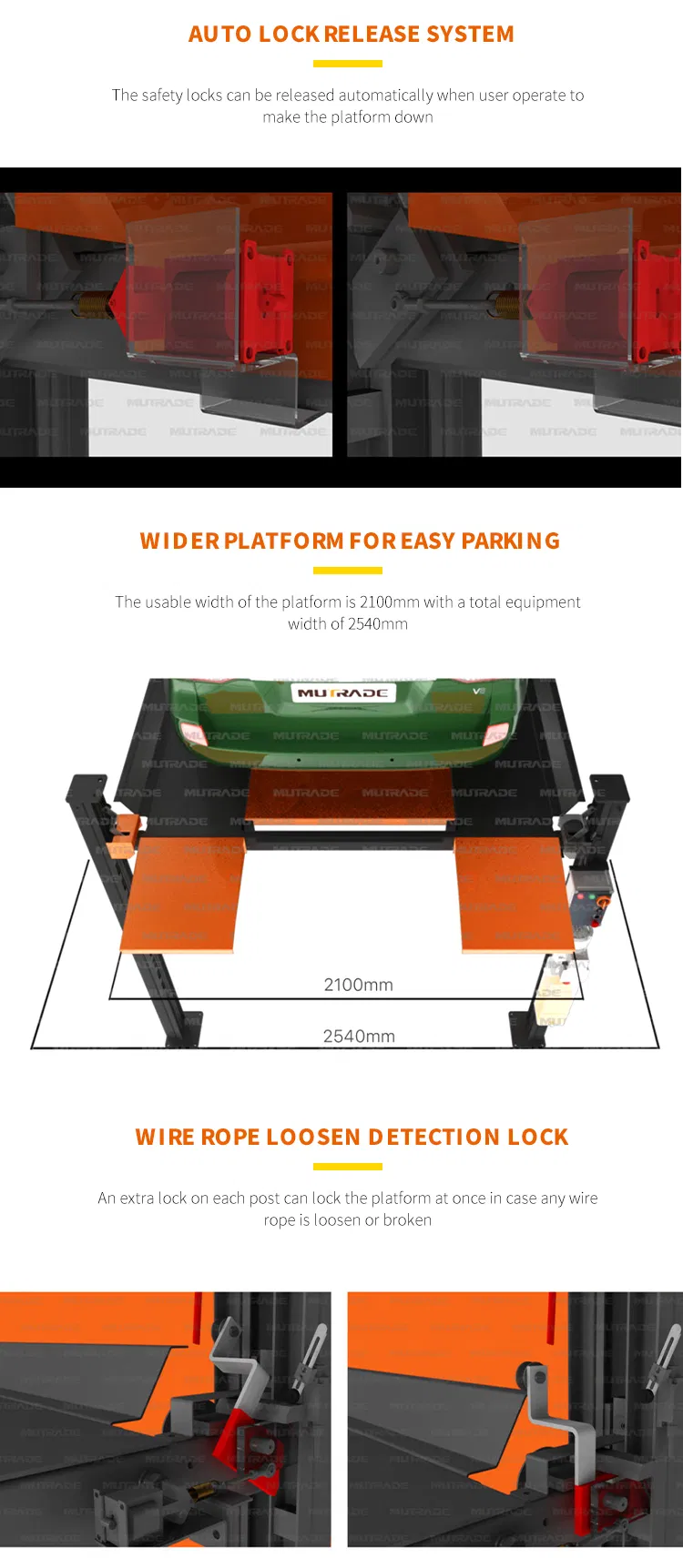

Safety is prioritized with automatic safety locks, a dynamic anti-falling lock system, emergency stop buttons, and overload protection.

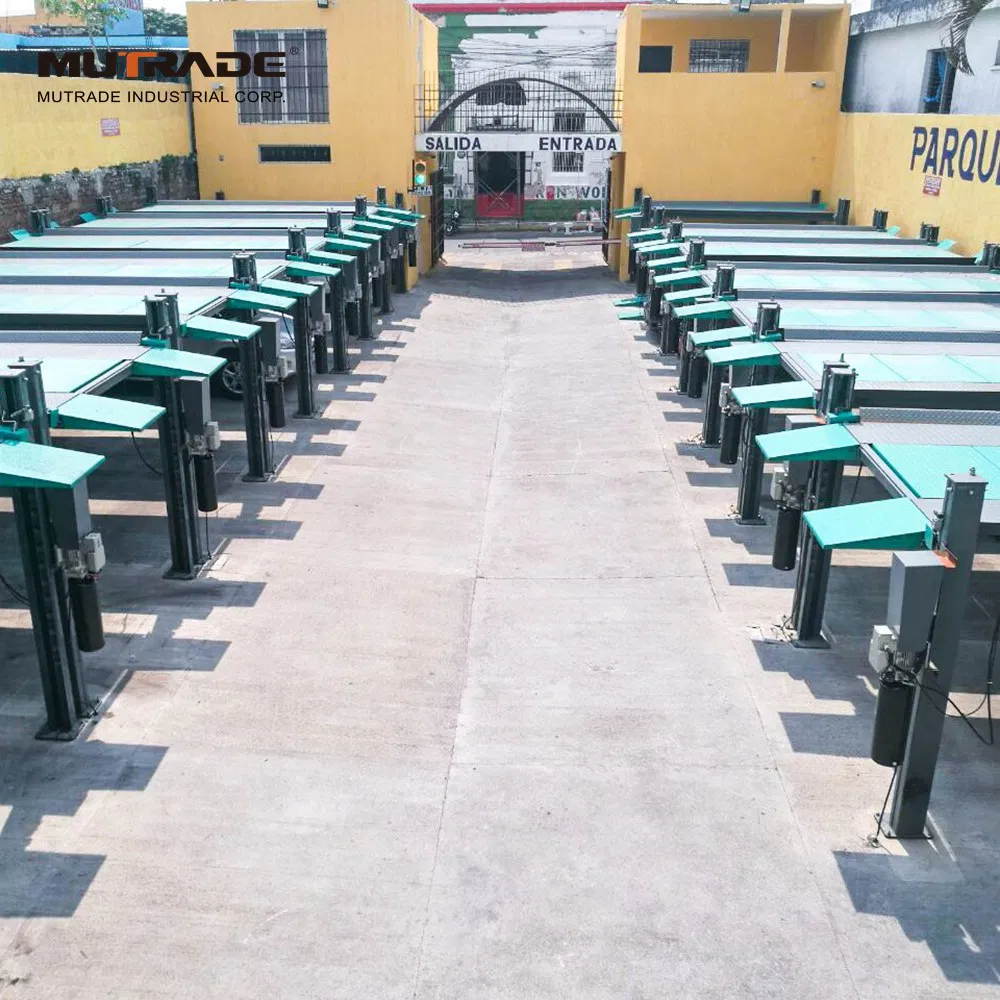

Can it be installed outdoors?
Yes, the system is designed for versatile installation and can be used in both indoor and outdoor environments.
What are the power requirements?
The system operates on a standard 220V voltage, utilizing a key switch working mode for controlled operation.
What is the warranty period for this equipment?
We offer a 12-month warranty for the entire unit and an extended 5-year warranty specifically for the main structural components.
