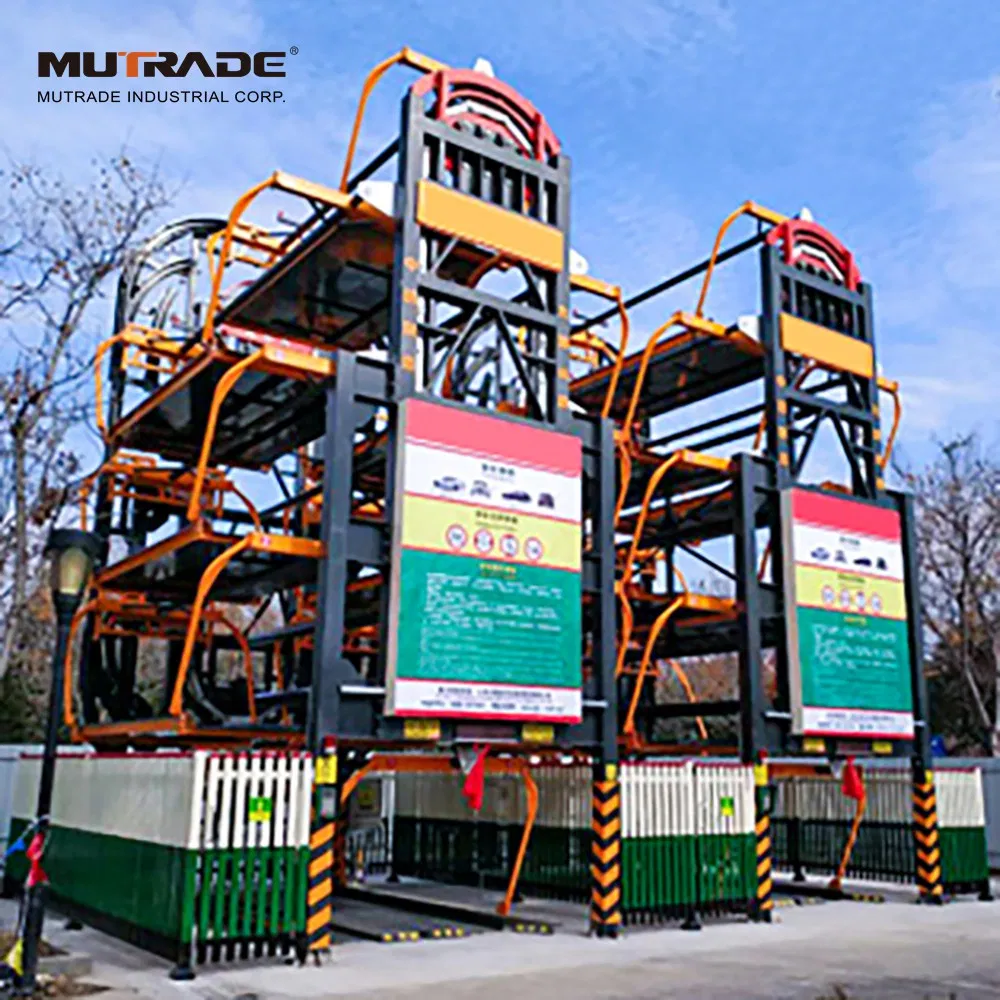

Rotary Smart Parking System Ferris Wheel Parking Carousel Parking System

1 / 5

Rotary Smart Parking System Ferris Wheel Parking Carousel Parking System

Customization:	Available
Level:	Max 11 Levels
Parking Post:	9-24 Posts

Send Inquiry

Product Description

Technical Specifications

Model:ARP series

Compatibility:Sedans or SUVs

Control System:Touch Screen / IC Card / Button

Mechanism:Hydraulic

Load Capacity:2000kg

Operation:Fully Automatic

Warranty:5 Years Structure, 1 Year Equipment

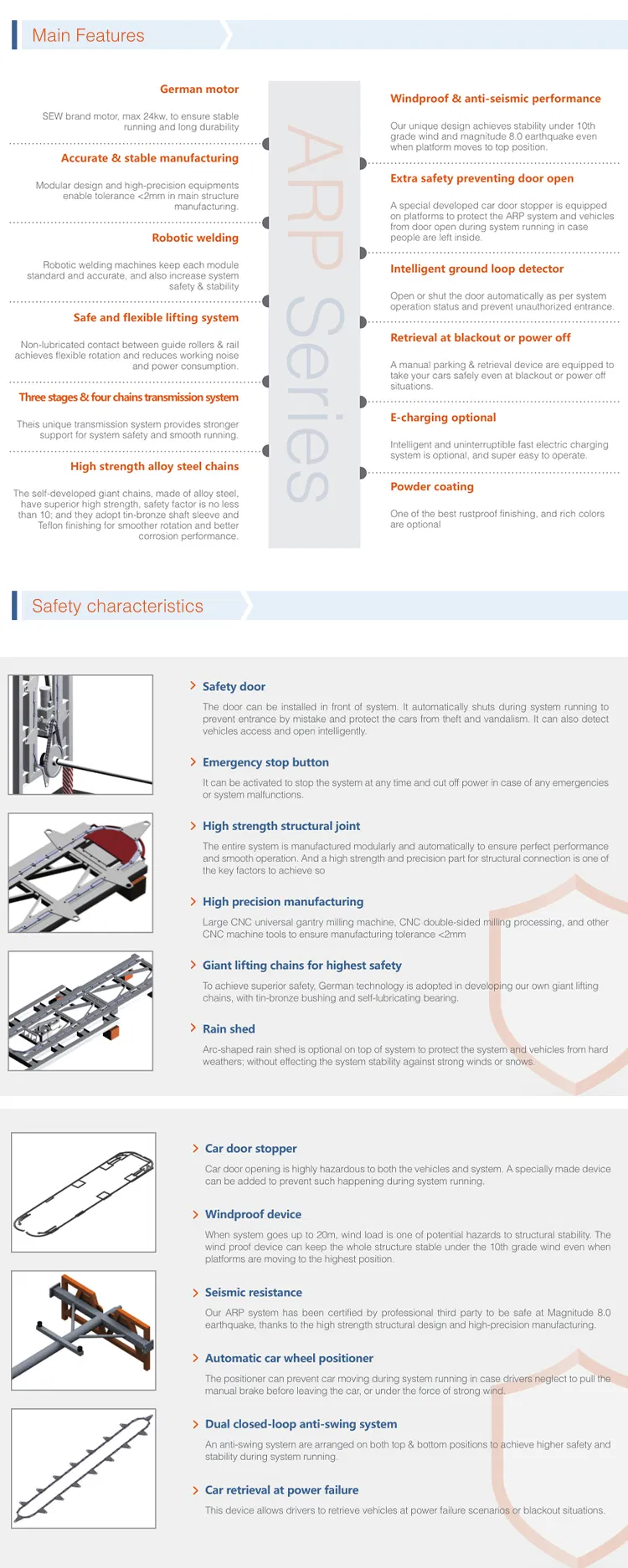

Safety:Anti-Collision, Emergency Stop, Fire Suppression

Surface:Powder Coating

Certifications:CE, ISO, CCC

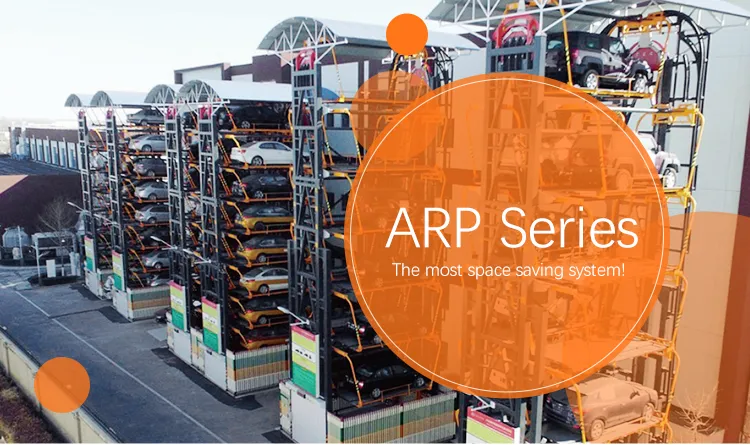

Rotary Smart Parking System

Rotary Smart Parking System Ferris Wheel Parking Carousel Parking System

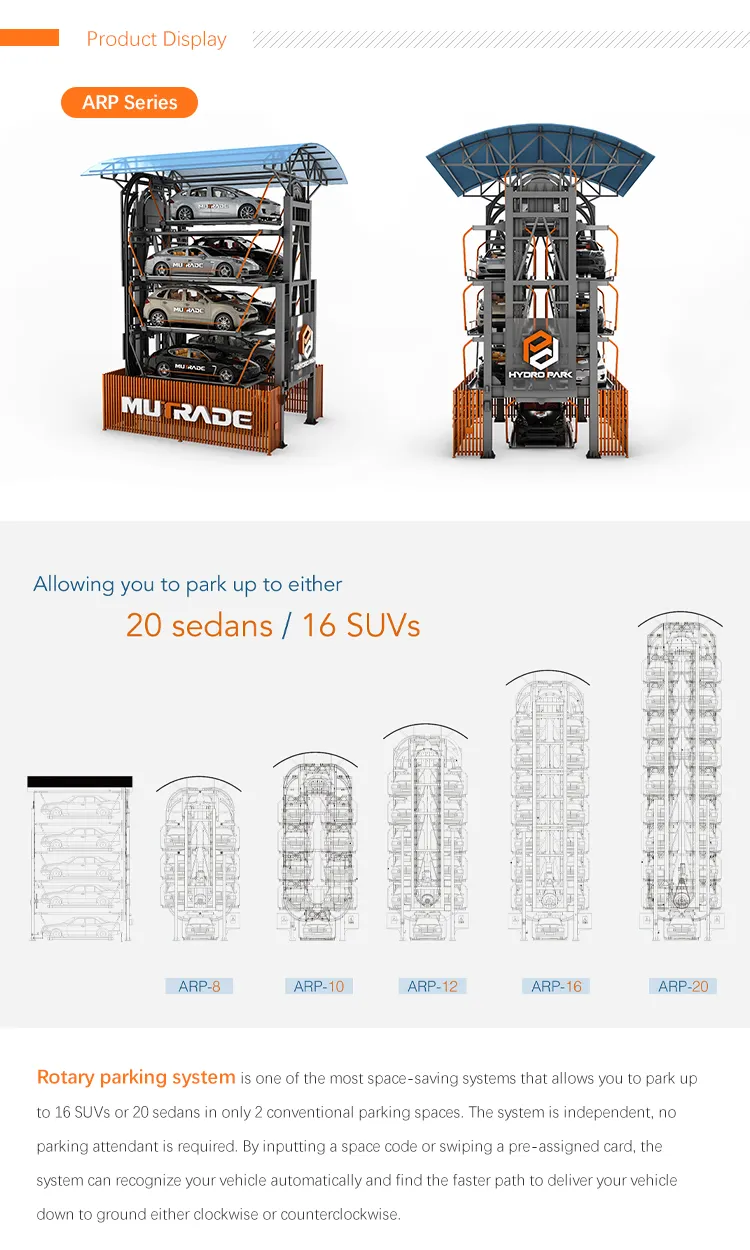

Rotary parking system is one of the most space-saving systems that allow you to park up to 16 SUVs or 20 sedans in only 2 conventional parking spaces. The system is independent, no parking attendant is required.

By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to the ground either clockwise or counterclockwise.

Technical Parameters

Models	Equipment Size (LWH)mm	Fit Car Dimension (LWH)mm	Fit Car Weight	Motor Power (Kw)	Interface	Control
Sedan Type - Optional Post Smart Vertical Rotary
8 cars	6500*5500	530020001550	2000Kg	5.5	Button+ IC Card	PLC Control
12 cars	6500*5500	530020001550	2000Kg	9.2	Button+ IC Card	PLC Control
20 cars	6500*5500	530020001550	2000Kg	22	Button+ IC Card	PLC Control
SUV Type - Optional Post Smart Vertical Rotary
8 cars	6500*5700	530019001950	2350Kg	5.5	Button+ IC Card	PLC Control
16 cars	6500*5700	530019001950	2350Kg	18.5	Button+ IC Card	PLC Control

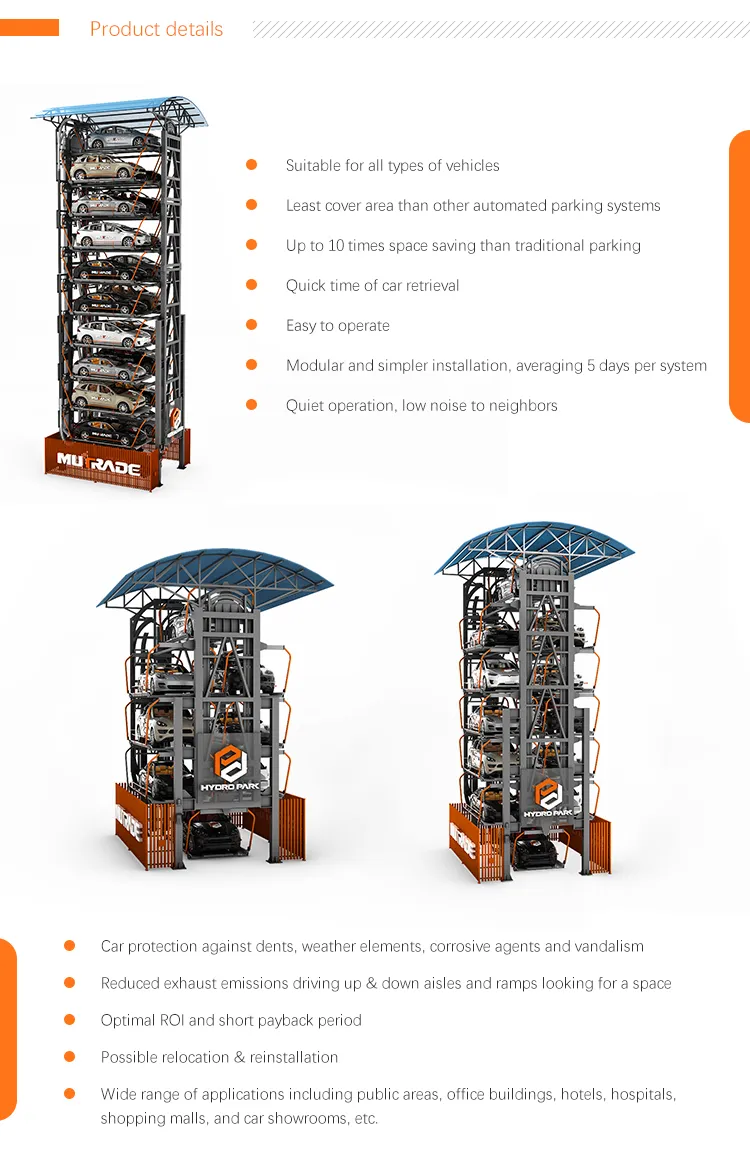

Detailed Gallery

Frequently Asked Questions

1. How many cars can the rotary parking system hold?

The system is highly efficient and can park up to 16 SUVs or 20 sedans within the footprint of just 2 conventional parking spaces.

2. Is a professional attendant required to operate the system?

No, the system is fully automatic and independent. Users can operate it via a touch screen, IC card, or simple button interface.

3. What vehicle sizes are compatible with this system?

It is designed for standard sedans (up to 1550mm height) and SUVs (up to 1950mm height), with a weight capacity of up to 2350kg for SUV models.

4. What safety features are included?

Safety is a priority, featuring anti-collision sensors, emergency stop buttons, overload protection, and an integrated fire suppression system.

5. What is the warranty and after-sales service?

The equipment comes with a 5-year warranty for the structure, a 1-year warranty for the whole unit, and lifetime after-sales service support.

6. How does the system retrieve the car?

Once the user swipes their card or enters their code, the PLC control calculates the shortest path (clockwise or counterclockwise) to bring the vehicle to ground level.
