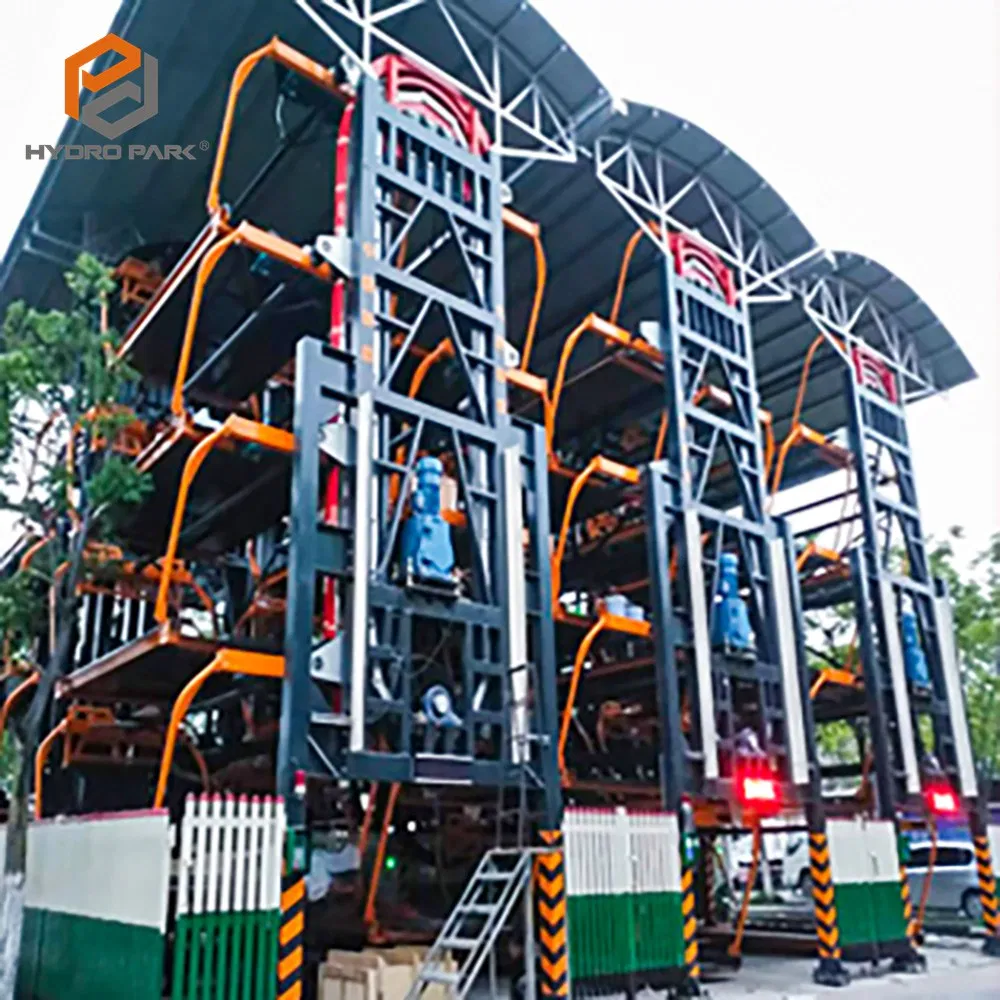

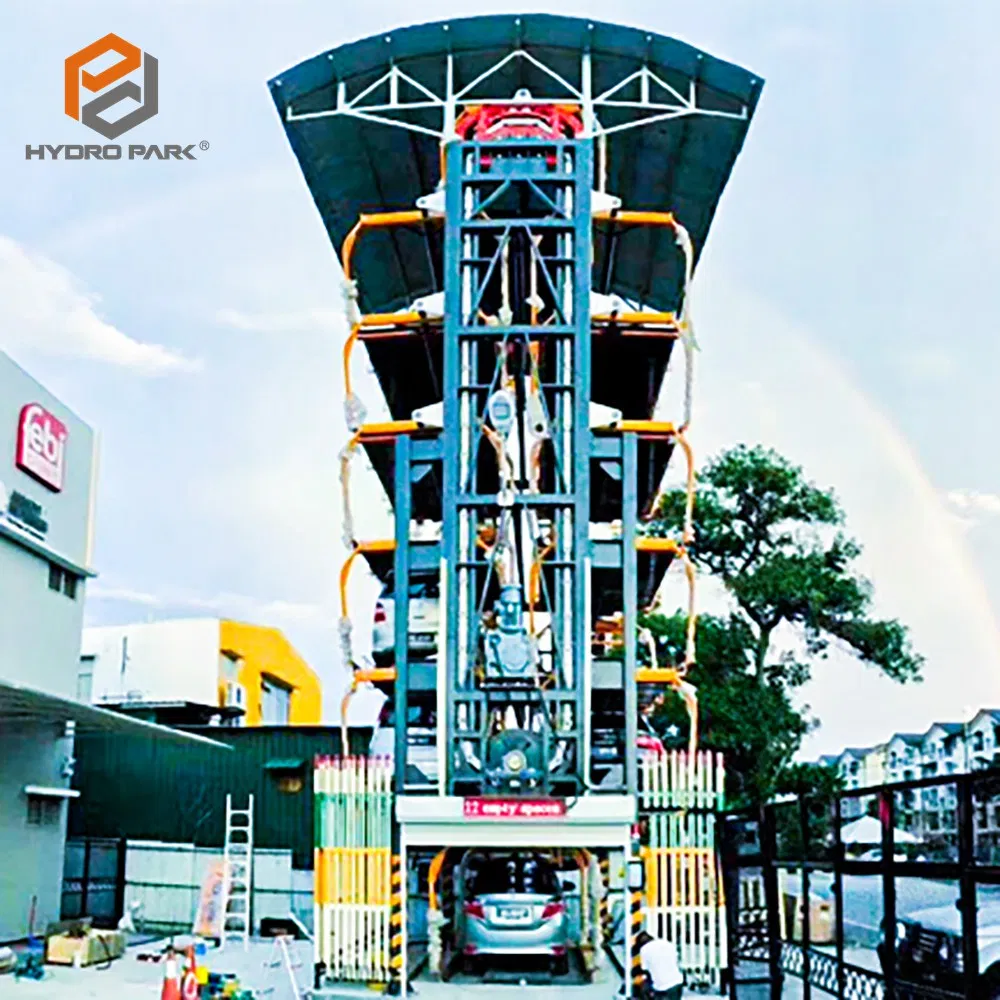

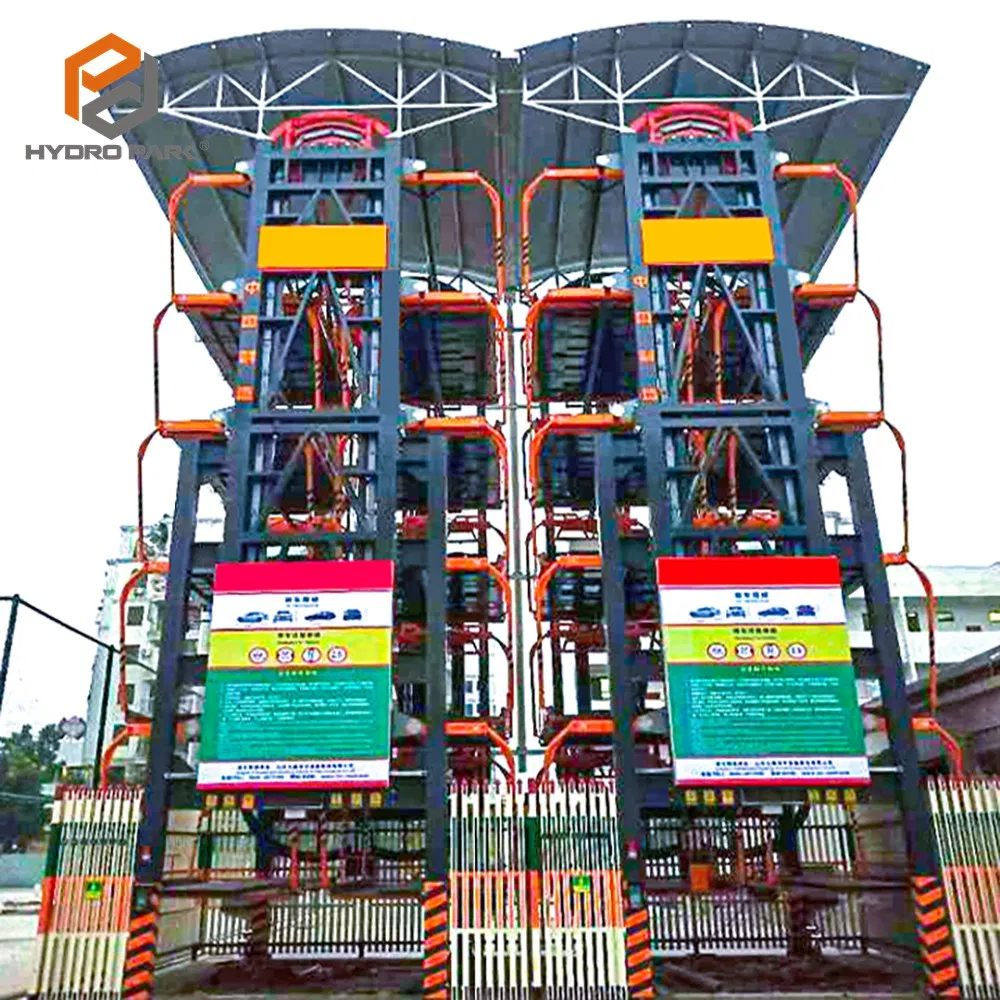

Rotary Smart Parking System with CE Certificate

1 / 5

Rotary Smart Parking System with CE Certificate

Customization:	Available
Level:	Max 11 Levels
Parking Post:	9-24 Posts

Send Inquiry

Product Description

Basic Specifications

Model NO.

ARP series

Compatibility

Sedans or Suvs

Control System

Touch Screen / IC Card / Button

Installation

Outdoor

Lifting Mechanism

Hydraulic

Load Capacity

2000kg

Operation Mode

Fully Automatic

Safety Features

Anti-Collision Sensors, Emergency Stop, Overload Protection

Type

Rotary Parking System

Warranty

5 Years Structure, 1 Year Equipment

Operation Voltage

24V

Surface Treatment

Powder Coating

Certification

CE, ISO, CCC

HS Code

84289020

Production Capacity

500 Sets Per Month

Product Description

Rotary Smart Parking System with CE Certificate

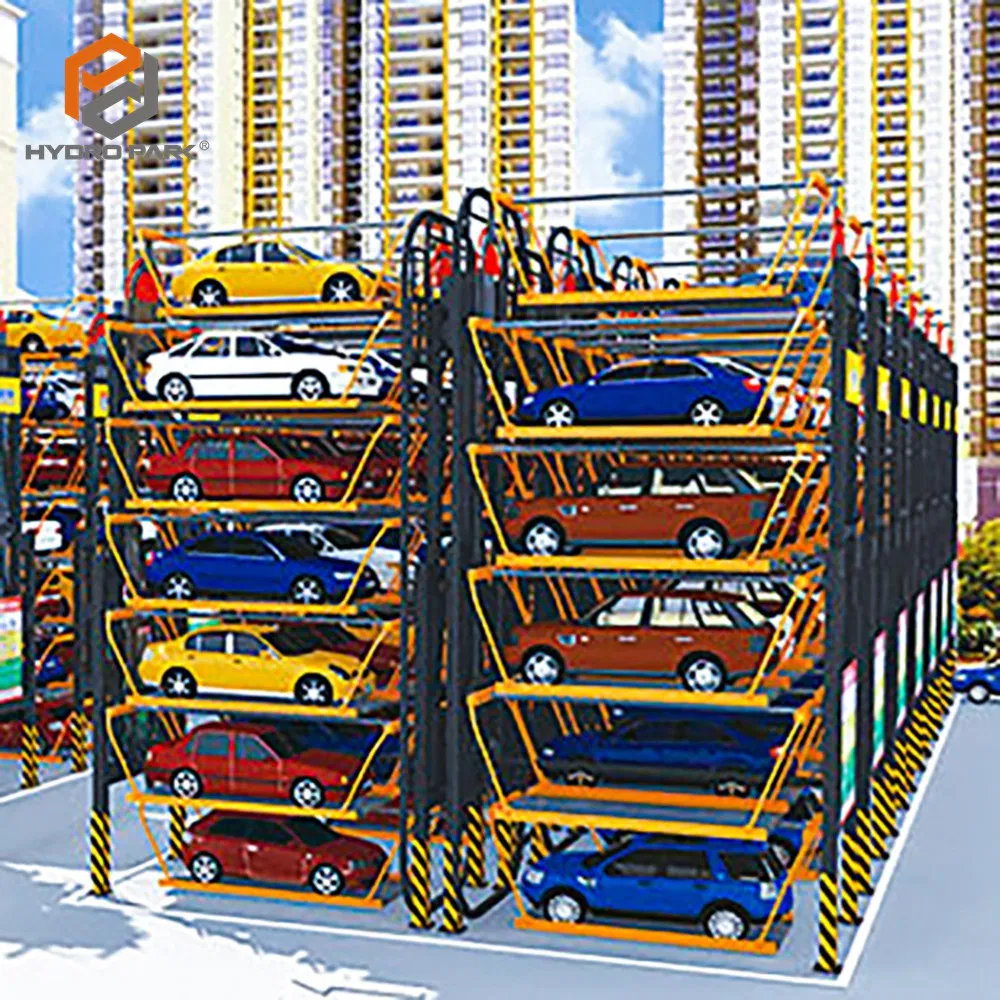

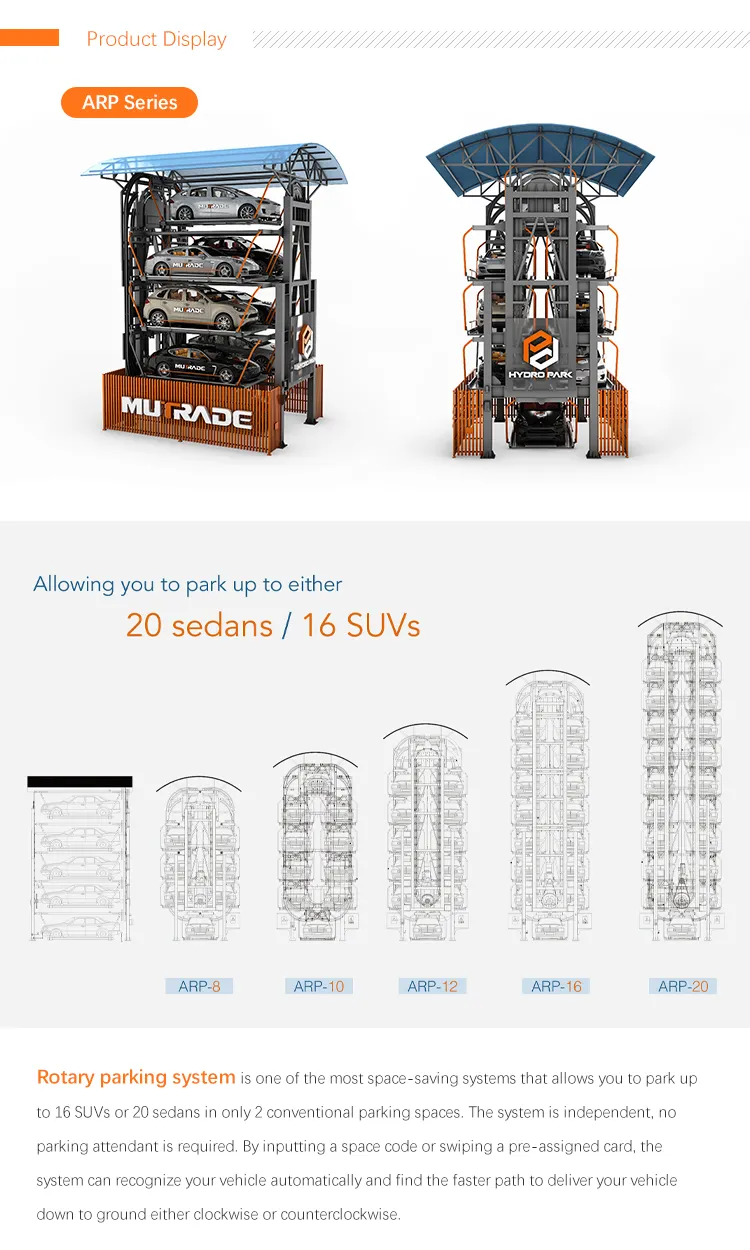

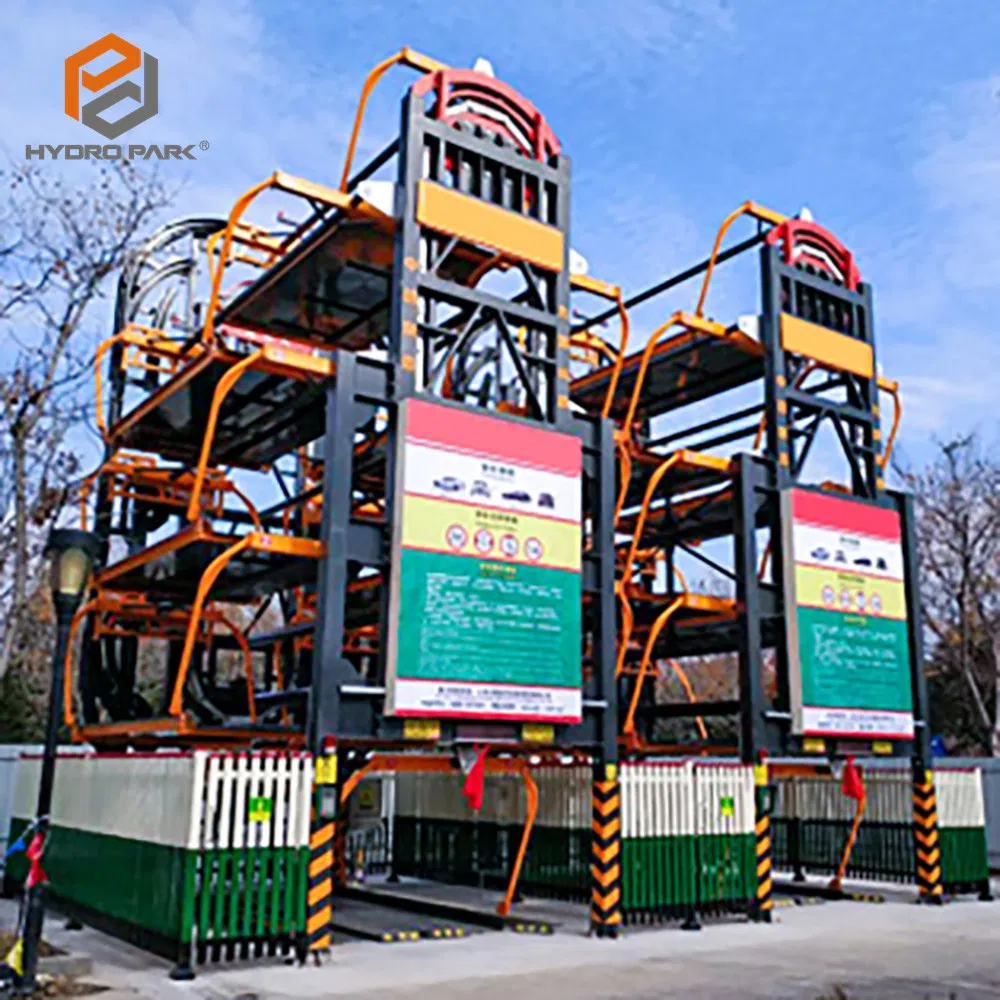

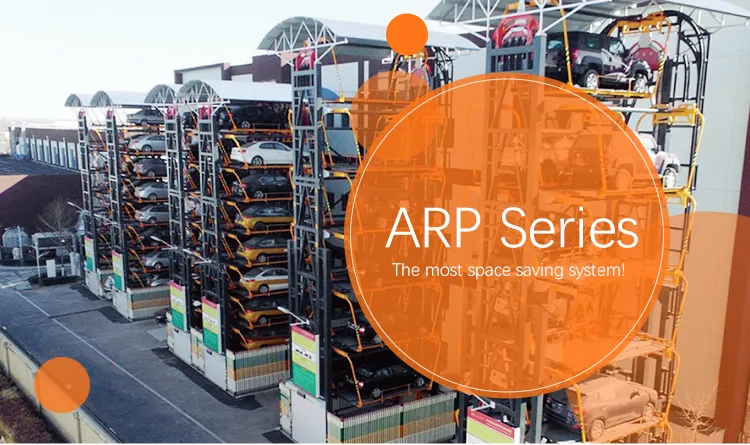

Rotary parking system is one of the most space-saving systems that allow you to park up to 16 SUVs or 20 sedans in only 2 conventional parking spaces. The system is independent, no parking attendant is required.

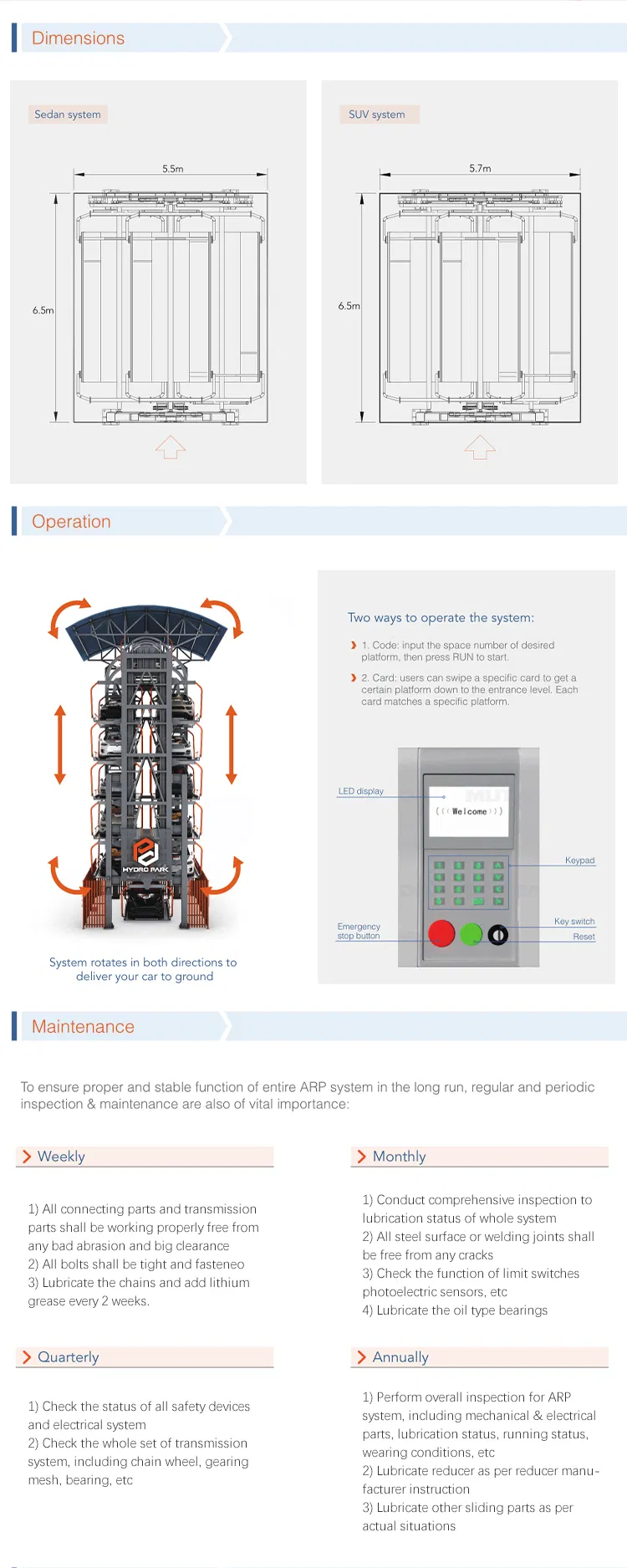

By inputting a space code or swiping a pre-assigned card, the system can recognize your vehicle automatically and find the faster path to deliver your vehicle down to the ground either clockwise or counterclockwise.

Type	Models	Equipment size(LWH)mm	Fit Car Dimension(LWH)mm	Fit Car Weight	Motor Power(Kw)	Control method
Sedan	8 cars	6500*5500	530020001550	2000Kg	5.5	PLC Control
Sedan	10 cars	6500*5500	530020001550	2000Kg	7.5	PLC Control
Sedan	12 cars	6500*5500	530020001550	2000Kg	9.2	PLC Control
Sedan	16 cars	6500*5500	530020001550	2000Kg	15	PLC Control
Sedan	20 cars	6500*5500	530020001550	2000Kg	22	PLC Control
SUV	8 cars	6500*5700	530019001950	2350Kg	5.5	PLC Control
SUV	12 cars	6500*5700	530019001950	2350Kg	11	PLC Control
SUV	16 cars	6500*5700	530019001950	2350Kg	18.5	PLC Control

Technical Excellence

Our solution focuses on high-end mechanical parking equipment. We develop, design and manufacture mechanical parking equipment like 2 post parking lift, four-post car lift, stacker parking lift, puzzle parking system, car turntable, and scissor car lift.

📍 Advanced Technology: Utilizing laser cutting and robotic processing.
📍 Precise Manufacture: Ensuring long-term reliability and safety.
📍 Strong Support: Providing lifetime after-sales service.
📍 Safety First: Equipped with anti-collision sensors and emergency stops.

Frequently Asked Questions

How many cars can be parked in a single system?

The Rotary Smart Parking System can accommodate up to 20 sedans or 16 SUVs within the footprint of just 2 conventional parking spaces.

Is an operator required to run the system?

No, the system is fully automatic and independent. Users can retrieve or park their vehicles using a touch screen, IC card, or simple button interface.

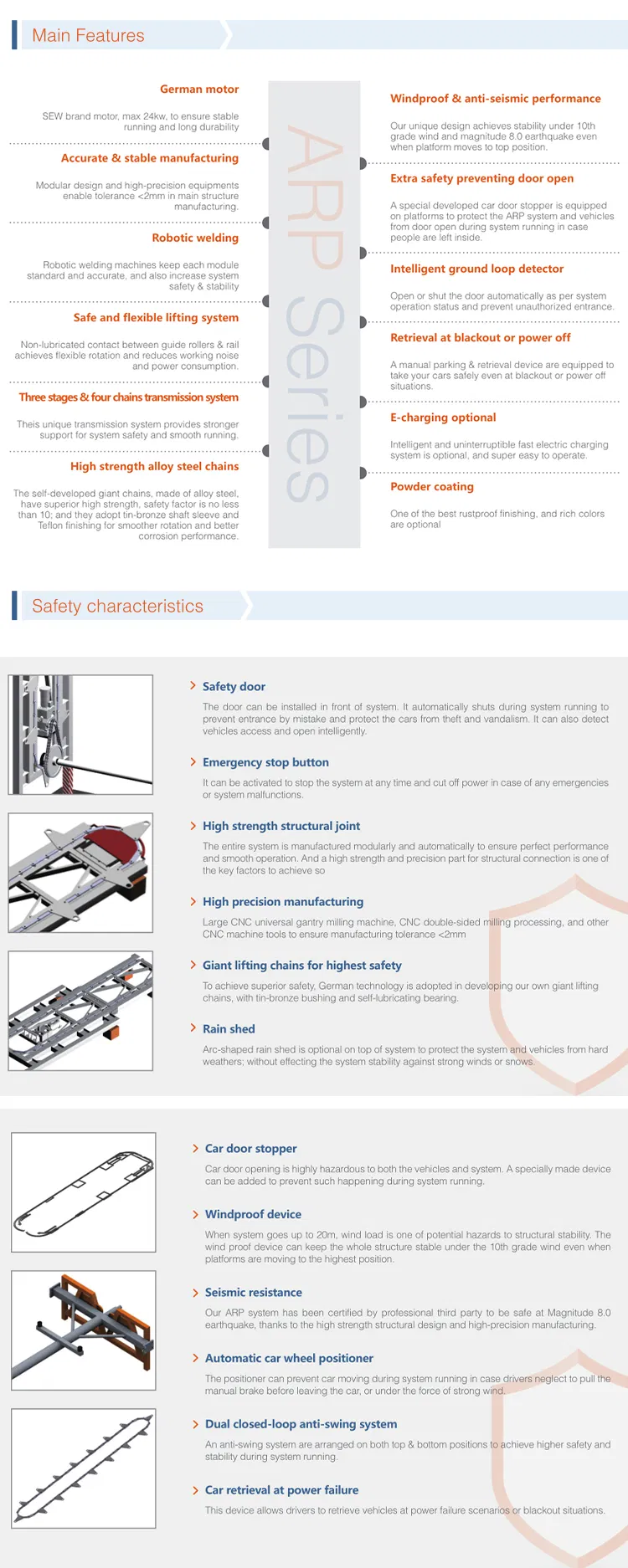

What are the key safety features?

Safety is a priority; the system includes anti-collision sensors, emergency stop buttons, overload protection, and fire suppression system compatibility.

What kind of maintenance is required?

Due to the hydraulic driving mechanism and powder-coated finish, maintenance is minimal. We provide a 5-year warranty on the structure and lifetime after-sales support.

Can the system be installed outdoors?

Yes, the system is designed for outdoor installation with durable surface treatments to withstand various weather conditions.

What is the power requirement for the equipment?

The operating voltage is 24V for control components, while the motor power ranges from 5.5Kw to 22Kw depending on the model and capacity. Power configurations can be customized.
