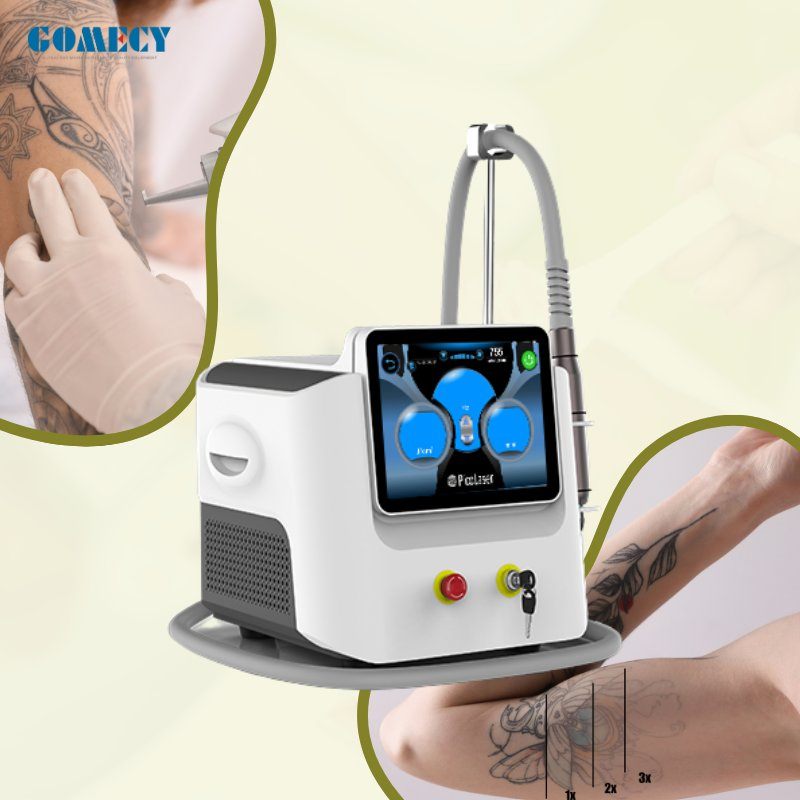

Advanced Nd YAG Laser System for Carbon Peeling and Acne Treatment

What is Picory?

The Q-Switched Nd:YAG Laser System uses advanced selective photothermolysis technology to target and break down pigments in the skin and tattoos without damaging surrounding tissues. Ultra-short, high-energy pulses deliver a powerful photoacoustic effect, fragmenting pigment particles that are naturally eliminated by the body.

With four professional wavelengths (532nm, 755nm, 1064nm, 1320nm), this device offers a complete solution for pigment and skin treatments:

532nm - Perfect for red, orange, and yellow pigments or superficial spots, providing immediate visible results and brightened skin.
755nm - Ideal for green and blue pigments and lighter skin types, achieving precise pigment removal with minimal irritation.
1064nm - Deep penetration for black or dark pigments, suitable for all skin types, especially darker tones, with safe and effective treatment.
1320nm - Targets deeper dermal layers for skin rejuvenation, acne improvement, and collagen remodeling, leaving skin smoother and younger-looking.

Combined with adjustable spot sizes, high power output, and dual water + air cooling, this system is designed for professional clinics seeking versatile, efficient, and safe pigment removal and skin rejuvenation treatments.

☆

Indications

Tattoo removal, including multi-color tattoos.
Pigmentation issues such as age spots, sun spots, and melasma.
Freckles and other superficial skin pigments.
Achieving a brighter and more even skin tone.
Carbon peeling for non-invasive facial whitening and skin rejuvenation.
Improving acne and enhancing overall skin texture.

📋

Product Attributes

Parameter	Specification
Light Source	Nd:YAG Solid Laser, Q-Switched
Wavelength	755nm, 1064nm, 532nm, 1320nm
Laser Head	6 Heads
Standard Configuration	755nm, 1064nm, 532nm, 1320nm
Optional Configuration	Adjustable Spot Size (532nm & 1064nm)
Power	2000W
Frequency	1-10Hz adjustable
Spot Size	2-10mm
Power Output	100-2000 J/cm²
Cooling System	Water Cooling + Air Cooling
Electrical Requirements	100-240VAC, 20A max, 50/60Hz
Fuse	T5AL250V / T10AL250V Ø5 × 20

✔

Product Details

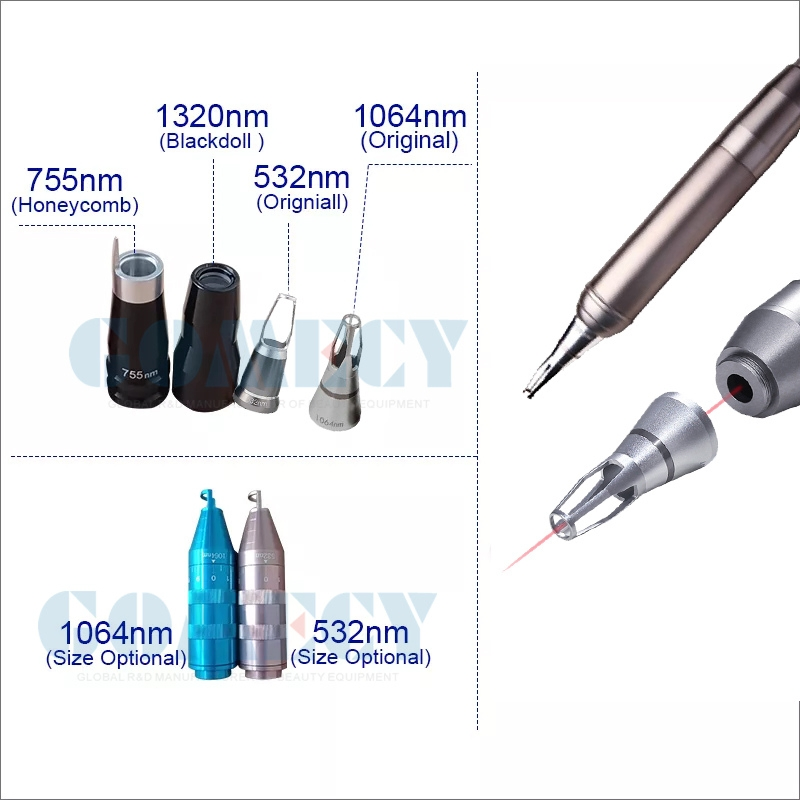

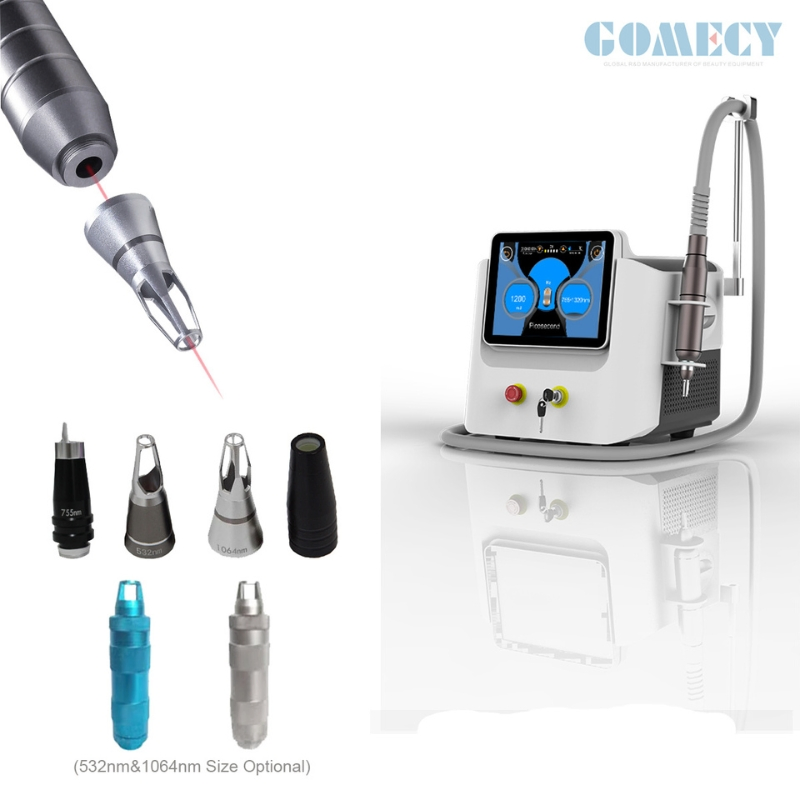

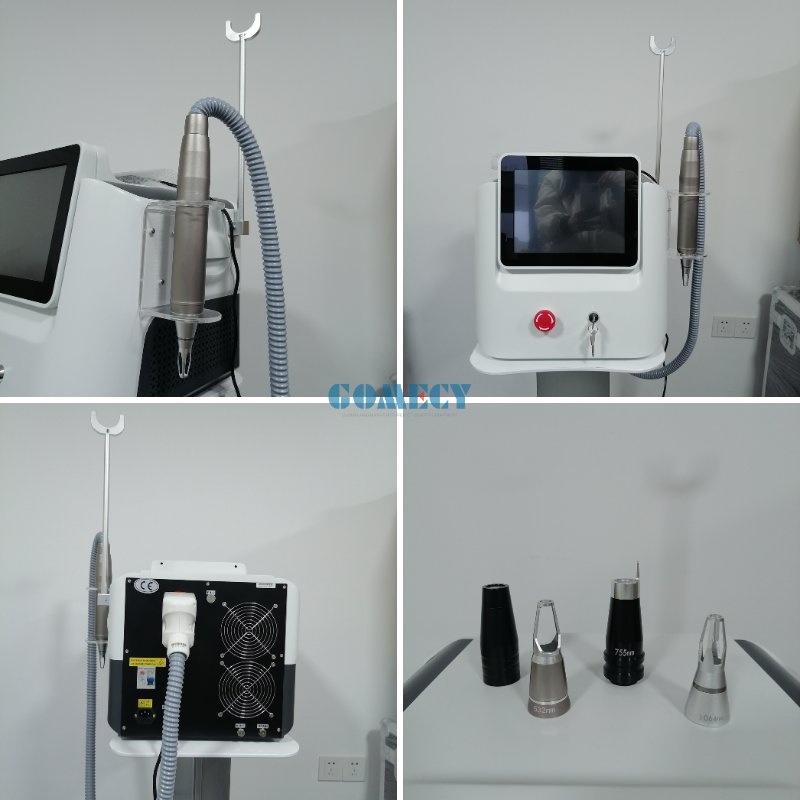

Multiple Handpieces: Comes with 6 laser heads to cover different treatments.
Adjustable Frequency & Spot Size: Allows customized settings for different skin types and treatment areas.
Powerful Cooling System: Dual water and air cooling ensures continuous and safe operation.
High Peak Energy: Provides strong results for deep pigment and multi-colored tattoos.
User-Friendly Interface: Easy-to-operate system with stable performance.

➔

Treatment Procedure

Pre-Treatment Evaluation: Assess the patient's skin type, tattoo color, pigment depth, and overall skin condition.

Test Spot: Perform a small test on the target area to determine optimal treatment parameters.

Wavelength Selection: Choose 532nm, 755nm, 1064nm, or 1320nm based on target pigment color.

Adjust Spot Size and Energy: Set precise output according to the patient's specific skin type.

Cooling and Safety: Apply cooling during the procedure to protect the epidermis.

Laser Application: Deliver Q-switched laser pulses observing clinical endpoints like mild frosting.

Post-Treatment Assessment: Check treated area and provide essential aftercare instructions.

⚠

Care & Contraindications

Pre & Post-treatment Care

Avoid tanning and excessive sun exposure.
No irritating skincare products 1 week before.
Apply soothing and hydrating skincare after.
Avoid hot baths and saunas for 1 week.
Use sunscreen daily.

Contraindications

Pregnant or breastfeeding women.
Severe skin diseases or active infections.
Individuals with keloid-prone skin.
Patients with pacemakers or metal implants.

Frequently Asked Questions

Q: What types of tattoos can this system remove? A: Thanks to the four wavelengths (532nm, 755nm, 1064nm, 1320nm), it can effectively treat multi-color tattoos including black, blue, green, red, orange, and yellow pigments.

Q: Is the treatment painful? A: Most patients describe the sensation as a snap of a rubber band. Our dual water and air cooling system significantly reduces discomfort and protects the skin during the procedure.

Q: How many sessions are typically required? A: The number of sessions depends on the pigment depth, color, and skin type. Significant results are often seen after 3-6 sessions, spaced several weeks apart.

Q: What is the downtime after a session? A: Downtime is minimal. You may experience slight redness or swelling for a few hours to a few days. Non-invasive treatments like carbon peeling have virtually no downtime.

Q: Can it be used on all skin types? A: Yes, the 1064nm wavelength is particularly safe and effective for darker skin tones, while the 532nm and 755nm wavelengths target specific pigments in lighter skin types.

Q: What are the benefits of the 1320nm wavelength? A: The 1320nm wavelength is used for "Black Doll" carbon peeling, which helps in deep cleaning, skin rejuvenation, acne treatment, and shrinking pores without damaging the skin surface.
